KUJANG patrol craft (1981)
Cundrik 1998
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Kujang | PAT201 | SFCN, Villeneuve-la-Garenne, France | 5.1980 | 17.10.1980 | 4.1981 | in service (2019) | |
| Parang | PAT202 | SFCN, Villeneuve-la-Garenne, France | 7.1980 | 18.11.1980 | 4.1981 | in service (2019) | |
| Celurit | PAT203 | SFCN, Villeneuve-la-Garenne, France | 9.1980 | 20.3.1981 | 8.1981 | in service (2019) | |
| Cundrik | PAT204 | SFCN, Villeneuve-la-Garenne, France | 7.9.1980 | 10.11.1980 | 10.1981 | in service (2019) | |
| Belati | PAT205 | SFCN, Villeneuve-la-Garenne, France | 2.1981 | 21.5.1981 | 12.1981 | in service (2019) |
Technical data
| Displacement standard, t | 126 |
|---|---|
| Displacement full, t | 156 |
| Length, m | 35.5 pp 38.3 oa |
| Breadth, m | 6.00 |
| Draught, m | 1.78 hull 2.60 propellers |
| No of shafts | 2 |
| Machinery | 2 AGO SACM 195V12 CZSHR diesels |
| Power, h. p. | 4400 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(18) |
| Armament | 1 x 1 - 20/90 GAM-B01 or 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 18 |
Graphics

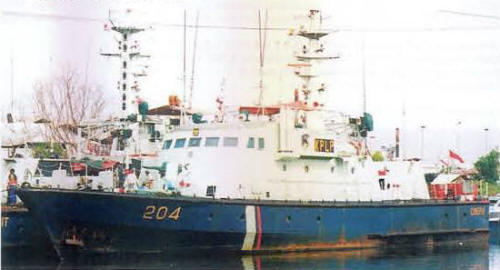

Cundrik 1998
Project history
Patrol craft also equipped for SAR duties.
Modernizations
None.
Naval service
No significant events.
