BC4001 patrol boats (1981-1986)
BC7001 2000
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
BC4001-4006 BC5001-5006 BC6001-6006 BC7001-7006 BC8001-8006 BC9001-9006 |
Lürssen, Vegesack, West Germany: BC4001-4006, 5001-5006 Fulton, Ruisbroeek, Belgium: BC6001-6006 Sheepswerven Van Langebrugge, Belgium: BC7001-7006 PT PAL, Surabaya: BC8001-8006, 9001-9006 |
1981: BC4001-4006, 5001-5006 1981-82: BC6001-6006 1982: BC7001-7006 1985-86: BC8001-8006 1986: BC9001-9006 |
BC7003 (foundered 19.10.2015), BC9002 (foundered 19.10.2015) |
none |
in service (2019): BC4001-4006, 5001-5006, 6001-6006, 7001, 7002, 7004-7006, 8001-8006, 9001, 9003-9006 |
Technical data
| Displacement standard, t | 61 |
|---|---|
| Displacement full, t | 69 |
| Length, m | 26.0 wl 28.0 oa |
| Breadth, m | 5.40 |
| Draught, m | 1.60 |
| No of shafts | 2 |
| Machinery | BC4001-4003, 6001-6005: 2 Deutz SBA 16M 816LCK-R diesels BC4004-4006, 5001-5006, 6006, 7001-7006, 8001-8006, 9001-9006: 2 MTU diesels |
| Power, h. p. | BC4001-4003, 6001-6005: 2720 BC4004-4006, 5001-5006, 6006, 7001-7006, 8001-8006, 9001-9006: 2620 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil 10 |
| Endurance, nm(kts) | 1050(17) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 19 |
Graphics

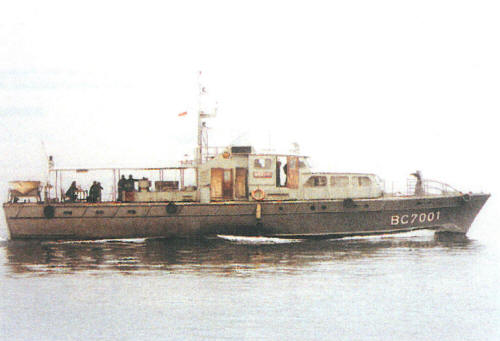

BC7001 2000
Project history
Patrol boats.
Modernizations
None.
Naval service
No significant events.
