BC1601 patrol boats (1999-2000)
BC1608 1999 (before delivery)
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
BC1601-1610 |
Lürssen, Vegesack, Germany: BC1601-1610 |
1999-2000: BC1601-1610 |
none |
none |
in service (2019): BC1601-1610 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 11 |
| Length, m | 16.0 |
| Breadth, m | 2.80 |
| Draught, m | 1.00 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 600 |
| Max speed, kts | 50 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 750(30) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | radar |
| Complement | 5 |
Graphics

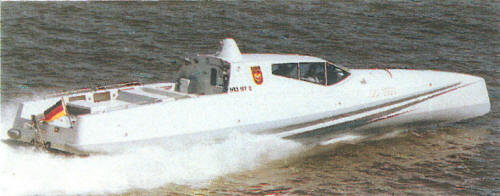

BC1608 1999 (before delivery)
Project history
Fast interceptors.
Modernizations
None.
Naval service
No significant events.
