FIGHTING SHIPS OF THE WORLD
INDONESIA
NON-NAVAL FORCES
BC10001 patrol boats (1999)
BC10001 1999 (before delivery)
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
BC10001, 10002, 20001-20003 |
Lürssen, Lemwerder, Germany: BC10001, 10002 PT PAL, Surabaya: BC20001-20003 |
5-11/1999: BC10001, 10002, 20001-20003 |
none |
none |
in service (2019): BC10001, 10002, 20001-20003 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 85 |
| Length, m | 28.2 |
| Breadth, m | 6.60 |
| Draught, m | 1.25 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V396 TE94 diesels |
| Power, h. p. | 3000 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1100(30) |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | Furuno FR8731 radar |
| Complement | 11 |
Graphics

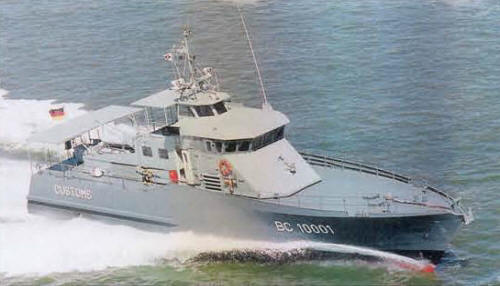

BC10001 1999 (before delivery)

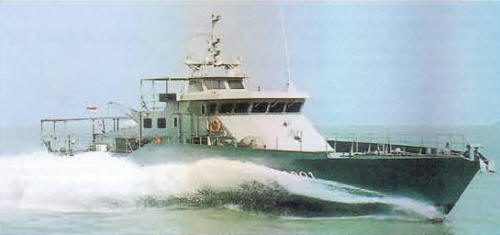

BC20001 1999
Project history
Aluminium construction.
Modernizations
None.
Naval service
No significant events.
