ADRI XLV logistics landing craft (2004)
ADRI XLVI
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| ADRI XLV | PT Kodja i, Tanjung Priok | 2004 | in service (2019) | ||||
| ADRI XLVI | PT Kodja i, Tanjung Priok | 2004 | in service (2019) | ||||
| ADRI XLVII | PT Kodja i, Tanjung Priok | 2004 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 580 |
| Length, m | 38.0 pp 42.0 oa |
| Breadth, m | 10.7 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 General Motors 6-71 diesels |
| Power, h. p. | 680 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(10) |
| Armament | none |
| Military load | 122 t of vehicles, 120 t of liquids |
| Electronic equipment | radar |
| Complement | 15 |
Graphics

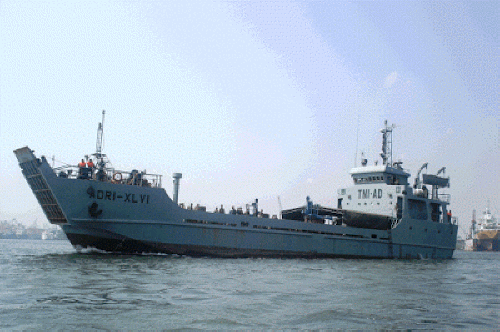

ADRI XLVI
Project history
Logistic landing craft. Has bow ramp and can be beached.
Modernizations
None.
Naval service
No significant events.
