ABIMANYU patrol ship (2017)
Abimanyu 2017
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Abimanyu | 7010 | PT Dumas Tanjung Perak | 26.7.2017 | 2017 | in service (2019) |
Technical data
| Displacement standard, t | 580 |
|---|---|
| Displacement full, t | |
| Length, m | 49.5 |
| Breadth, m | 9.40 |
| Draught, m | 2.20 |
| No of shafts | 2 |
| Machinery | 2 MAN V12-1400 diesels |
| Power, h. p. | 2800 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | small arms |
| Electronic equipment | radar |
| Complement | 24 + 102 passengers (rescue) |
Graphics

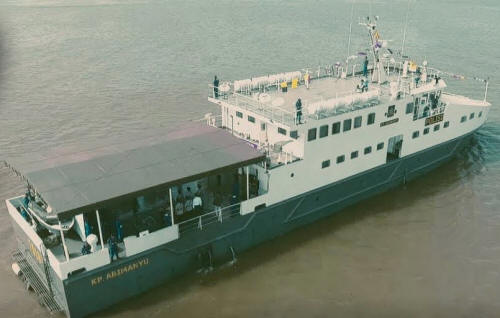

Abimanyu 2017
Project history
Large patrol ship for Marine Police. Serves as command ship, troop trasnport.
Modernizations
None.
Naval service
No significant events.
