PATTIMURA corvettes (1958)





Patimura 1980 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Pattimura 257, 1975- 371 270 Ansaldo, Livorno, Italy 8.1.1956 1.7.1956 28.1.1958 stricken 1985
Sultan Hasanudin 253, 1975- 372 275 Ansaldo, Livorno, Italy 8.1.1956 24.3.1957 8.3.1958 stricken 1979


Technical data


Displacement standard, t

950

Displacement normal, t

1200

Length, m

75.0 pp 82.4 oa

Breadth, m

10.4

Draught, m

2.70

No of shafts

3

Machinery

3 Ansaldo-Fiat diesels

Power, h. p.

6900

Max speed, kts

22

Fuel, t

diesel oil 100

Endurance, nm(kts)2400(18)
Armament

2 x 1 - 76/62 SMP3, 2 x 2 - 40/70 Breda type 64, 2 x 24 - 178 Hedgehog Mk 11 ASW RL, 4 DCT, 1 DCR

Electronic equipmentNWS-1, CWS-1 radars, QCU-2 sonar
Complement

110



Standard scale images


<i>Pattimura </i>1965
Pattimura 1965


Graphics

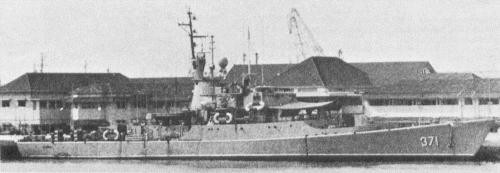

<i>Patimura </i>1980 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Patimura 1980 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history Italian Albatros class corvettes with diesel engines. Such ships were built for

Italian Albatros class corvettes with diesel engines. Such ships were built for Denmark, one for Netherlands and three for Italy. All sub-types varied in details. Indonesian ships were ordered together with fast frigates of Surapati class.

Modernizations

1976-1977, both: - 2 x 1 - 76/62, 1 x 2 - 40/70; + 2 x 1 - 85/52 90K, 2 x 2 - 25/80 2M-3M, 2 x 2 - 14.5/93

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
