WAIGEO patrol craft (1983)
Waigeo 1987
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 860 | PT PAL, Surabaya | 1982 | 1983 | stricken late 1990s | |||
| Waigeo | 861 | PT PAL, Surabaya | 1982 | 1983 | stricken ~2005 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 150 |
| Length, m | 32.0 |
| Breadth, m | |
| Draught, m | |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90 |
| Electronic equipment | Decca radar |
| Complement | 22 |
Graphics

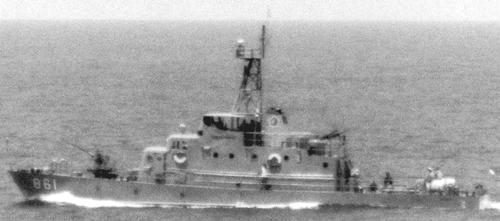

Waigeo 1987
Project history
Indonesian design, based on Australian Attack class but with lower freeboard and a more massive superstructure.
Modernizations
None.
Naval service
No significant events.
