SAMADAR coastal patrol craft (1976-1977)
Sawangi 1980
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
851 Samadar, late 1980s- KAL.II201 852 Sasila, 1981- KAL.II202 853 Sabola, 1981- KAL.II203 854 Sawangi, late 1980s- KAL.II204 855 Sadarin, late 1980s- KAL.II205 856 Salmaneti, late 1980s- KAL.II206 |
Hawker-De Havilland Australia, Melbourne, Australia |
8-11/1976: 851-854 1.1977: 855, 856 |
none |
none |
1980s, 851-856: to Maritime Police 2012-15: KAL.II201-206 |
Technical data
| Displacement standard, t | 23 |
|---|---|
| Displacement full, t | 27 |
| Length, m | 15.7 |
| Breadth, m | 4.79 |
| Draught, m | 1.31 |
| No of shafts | 2 |
| Machinery | 2 MTU 8V331 diesels |
| Power, h. p. | 1400 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 950(18) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | Decca 110 radar |
| Complement | 10 |
Graphics

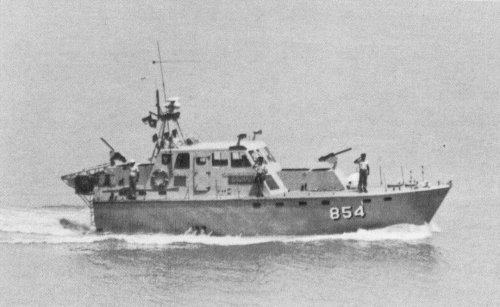

Sawangi 1980
Project history
Australian Carpentaria type. Grant-added purchase. Aluminium construction.
Modernizations
None.
Naval service
No significant events.
