KOBRA patrol boats (2003-2004)
Patola 2009
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
867 Kobra 868 Anakonda 869 Patola 870 Taliwangsa |
Fasharkan Mentigi Naval DY: 867 Pondok Dayung Naval Repair and Maintenance, Jakarta: 868 Fasharkan Riau Naval DY: 869 Fasharkan Manokwari Naval DY: 870 |
3.2003: 867-869 8.2004: 870 |
870 (2018) |
none |
in service (2019): 867-870 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 90 |
| Length, m | 36.0 |
| Breadth, m | 7.00 |
| Draught, m | 1.40 |
| No of shafts | 3 |
| Machinery | 3 Caterpillar 3412E diesels |
| Power, h. p. | 3600 |
| Max speed, kts | 31 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 20/85 S.20, 1 x 1 - 12.7/79 |
| Electronic equipment | Furuno radar |
| Complement | 20 |
Graphics

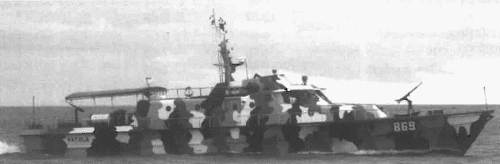

Patola 2009
Project history
Class KAL-36 patrol boats.
Modernizations
None.
Naval service
No significant events.
