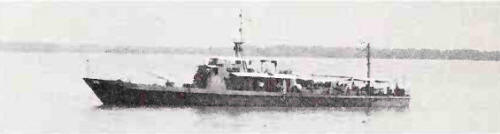

DKN916 1983

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
-	DKN504		Ishikawajima Harima, Tokyo, Japan			1963-64	stricken ~2015
-	DKN505		Ishikawajima Harima, Tokyo, Japan			1961-64	stricken ~2015
-	DKN506		Ishikawajima Harima, Tokyo, Japan			1961-64	stricken ~2015
-	DKN507		Ishikawajima Harima, Tokyo, Japan			1961-64	stricken ~2015
-	DKN508		Ishikawajima Harima, Tokyo, Japan			1961-64	stricken ~2015
-	DKN509		Uraga DYd, Yokosuka, Japan			1961-64	stricken ~2015
-	DKN510		Uraga DYd, Yokosuka, Japan			1961-64	stricken ~2015
-	DKN511		Uraga DYd, Yokosuka, Japan			1961-64	stricken ~2015
-	DKN512		Uraga DYd, Yokosuka, Japan			1961-64	stricken ~2015
-	DKN513		Uraga DYd, Yokosuka, Japan			1961-64	stricken ~2015

Technical data

Displacement standard, t	390
Displacement full, t	444
Length, m	44.0 pp 48.1 oa
Breadth, m	7.50
Draught, m	2.90
No of shafts	2
Machinery	2 MAN W8V 22/30 ALU diesels
Power, h. p.	1400
Max speed, kts	15.3
Fuel, t	diesel oil 41
Endurance, nm(kts)	2700(14)
Armament	1 x 1 - 20/85 S.20, 2 x 1 - 12.7/90
Electronic equipment	radar
Complement	35

Graphics

Project history

Large patrol craft with limited combat value. Have a cargo hold with 75t capacity.

Modernizations

None.

Naval service

No significant events.
