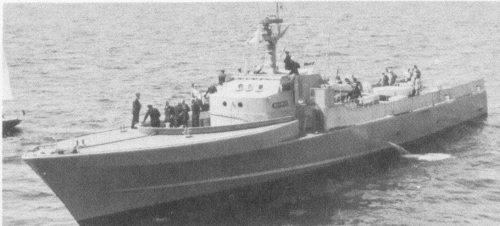

Harimau on trials

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Adjak	601		Lürssen, Vegesack, West Germany			1959	stricken 1974
Anoa	602, 1977- 655		Lürssen, Vegesack, West Germany			1959	stricken 1981
Beruang	603, 1977- 652		Lürssen, Vegesack, West Germany			1959	stricken 1987
Harimau	604, 1977- 654		Lürssen, Vegesack, West Germany			1959	stricken 1987
Matjan Kumbang	605, 1977- 653		Lürssen, Vegesack, West Germany			1960	stricken 1979
Matjan Tutul	606		Lürssen, Vegesack, West Germany			1960	sunk 15.1.1962
Serigala	607		Lürssen, Vegesack, West Germany			1960	stricken 1977
Singa	608		Lürssen, Vegesack, West Germany			1960	stricken 1974

Technical data

Displacement standard, t	160
Displacement full, t	220
Length, m	39.8 wl 42.6 oa
Breadth, m	7.10
Draught, m	2.90
No of shafts	4
Machinery	4 Mercedes-Benz diesels
Power, h. p.	14400
Max speed, kts	43
Fuel, t	diesel oil
Endurance, nm(kts)	1000(32)
Armament	2 x 1 - 40/70 Bofors 350, 4 - 533 TT
Electronic equipment	Decca 1226 radar
Complement	39

Standard scale images

Graphics

Project history

'TNC 45' boats built by Lürssen, Vegesack, in 1959-60. The first four boats had wooden hulls, but the second four were built of steel.

Modernizations

None.

Naval service

Matjan Tutul sunk 15.1.1962 by Dutch warships off Borneo while trying to land infiltrators in New Guinea.
