Andaman 1977

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
अर्नला [Arnala] (ex-СКР-100 [SKR-100])	P68		Yantar', Kaliningrad, USSR	28.8.1967	14.3.1968	30.11.1968 // 29.6.1972	stricken 4.1999
अंद्रोथ [Androth]	P69		Khabarovsk SYd, USSR	19.2.1957	18.6.1958	30.6.1972	stricken 4.1999
अंजदिप [Anjadip] (ex-СКР-108 [SKR-108])	P73		Yantar', Kaliningrad, USSR	18.11.1967	24.6.1968	31.12.1968 // 23.12.1972	stricken 12.2003

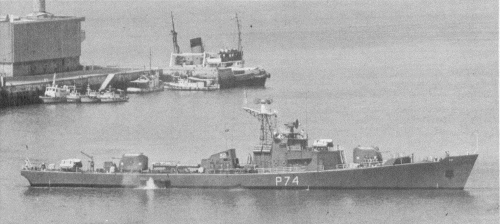

अंदमन [Andaman]	P74		Khabarovsk SYd, USSR			28.12.1973	foundered 22.8.1990
अमिनि [Amini] (ex-СКР-104 [SKR-104])	P75		Yantar', Kaliningrad, USSR	4.10.1967	23.4.1968	25.12.1968 // 12.12.1974	stricken 9.2002
कमोर्टा [Kamorta]	P77		Khabarovsk SYd, USSR			21.11.1968	stricken 10.1991
कद्मत्त [Kadmatt]	P78		Khabarovsk SYd, USSR			23.12.1968	stricken 11.1992
किल्तन [Kiltan]	P79		Khabarovsk SYd, USSR			30.10.1969	stricken 6.1987
कवरत्ति [Kavaratti]	P80		Khabarovsk SYd, USSR			23.12.1969	stricken 7.1986
कत्चल्ल [Katchall]	P81		Khabarovsk SYd, USSR			23.12.1969	stricken 12.1988
कंजर [Kanjar]	P82		Khabarovsk SYd, USSR			1976	stricken 1988
अमिंदिवि [Amindivi]	P83		Khabarovsk SYd, USSR			1976	stricken 1988

Technical data

Displacement standard, t	1000
Displacement normal, t	1140
Length, m	82.3
Breadth, m	9.20
Draught, m	2.93 mean 5.96 max
No of shafts	3
Machinery	CODAG, 2 M-2BE gas turbines, 1 61B-2 diesel
Power, h. p.	29400 (24000+5400)
Max speed, kts	29
Fuel, t	oil
Endurance, nm(kts)	1800(14)
Armament	2 x 2 - 76/59 AK-726, 1 x 3 - 533 TT, 4 x 16 RBU-2500 Smerch ASWRL, 1 DCR, 22 mines
Electronic equipment	Fut-N, Fut-B, Don radars, MG-312IE Titan, MG-311 Vychegda sonars, Bizan'-4B ECM suite
Complement	106

Standard scale images

Graphics

Project history

Soviet project 159AE ASW ships (later guard ships).

Modernizations

None.

Naval service

Andaman sank in heavy weather in the Bay of Bengal 22.8.1990.
