T80 patrol boats (1998-2018)
2001
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
T80 - 86 |
IAI, Ramta, Israel: T80, 81 Vasco SYd, Goa: T82-86 |
1998: T80 1999: T81 2003: T82 2004: T83 2005: T84 2018: T85, 86 |
none |
none |
in service (2019): T80 - 86 |
Technical data
| Displacement standard, t | 48 |
|---|---|
| Displacement full, t | 60 |
| Length, m | 21.6 pp 25.4 oa |
| Breadth, m | 5.50 |
| Draught, m | 1.80 |
| No of shafts | 3 |
| Machinery | T80, 81, 83, 84: 3 MTU 12V396 TE94 diesels T82: 3 MTU 8V396 TE94 diesels |
| Power, h. p. | 4570 |
| Max speed, kts | 46 |
| Fuel, t | diesel oil |
| Armament | 1 x 1 - 25/75 Typhoon, 2 x 1 - 7.6/90 |
| Electronic equipment | Koden radar, MSIS e/o system |
| Complement | 9 |

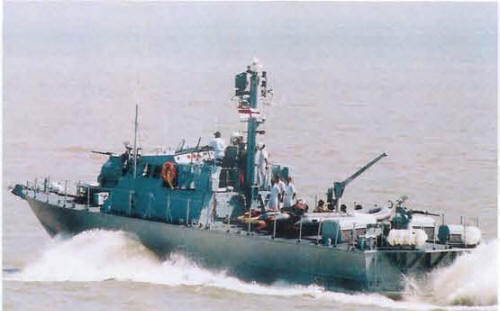

Graphics
2001
Project history
Israeli Super-Dvora class, intended to replace SDB Mk 2 boats.
Modernizations
None.
Naval service
No significant events.
