FIGHTING SHIPS OF THE WORLD
INDIA
COASTAL FORCES
CAR NICOBAR patrol craft (2009-2017)

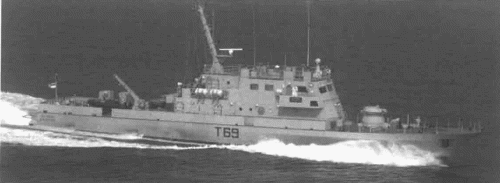

Car Nicobar 2009
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| कार निकोबार [Car Nicobar] | T69 | Garden Reach, Kolkata | 23.11.2007 | 16.2.2009 | in service (2019) | ||
| चेतलात [Chetlat] | T70 | Garden Reach, Kolkata | 23.11.2007 | 16.2.2009 | in service (2019) | ||
| कोरा डिव्ह [Kora Divh] | T71 | Garden Reach, Kolkata | 18.7.2008 | 8.9.2009 | in service (2019) | ||
| चेरियम [Cheriyam] | T72 | Garden Reach, Kolkata | 18.7.2008 | 8.9.2009 | in service (2019) | ||
| कंकरसो [Cankarso] | T73 | Garden Reach, Kolkata | 27.3.2009 | 29.6.2010 | in service (2019) | ||
| कोंडल [Kondul] | T74 | Garden Reach, Kolkata | 27.3.2009 | 29.6.2010 | in service (2019) | ||
| कल्पेनी [Kalpeni] | T75 | Garden Reach, Kolkata | 27.3.2009 | 12.10.2010 | in service (2019) | ||
| कब्र [Kabra] | T76 | Garden Reach, Kolkata | 29.3.2010 | 8.6.2011 | in service (2019) | ||
| कब्र [Koswari] | T77 | Garden Reach, Kolkata | 29.3.2010 | 12.7.2011 | in service (2019) | ||
| करवा [Karuva] | T78 | Garden Reach, Kolkata | 29.3.2010 | 25.8.2011 | in service (2019) | ||
| तरमुगली [Tarmugli] | T91 | Garden Reach, Kolkata | 30.6.2015 | 21.5.2016 | in service (2019) | ||
| तिल्लांचांग [Tillanchang] | T92 | Garden Reach, Kolkata | 30.6.2015 | 9.3.2017 | in service (2019) | ||
| तिहायु [Tihayu] | T93 | Garden Reach, Kolkata | 30.6.2015 | 19.10.2016 | in service (2019) | ||
| तरसा [Tarasa] | T94 | Garden Reach, Kolkata | 30.6.2016 | 26.9.2017 | in service (2019) |
100 - 1000 t displacement/ BRT tonnage vessels
Technical data
| Displacement standard, t | 260 |
|---|---|
| Displacement full, t | 325 |
| Length, m | 48.9 |
| Breadth, m | 7.50 |
| Draught, m | 2.60 |
| No of shafts | 3 waterjets |
| Machinery | 3 MTU 16V4000 M90 diesels |
| Power, h. p. | 11100 |
| Max speed, kts | 35 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(13) |
| Armament | 1 x 1 - 30/80 Medak CRN-91, 2 x 1 - 7.6/90 |
| Electronic equipment | Bharat 1245 radar, Bharat e/o system |
| Complement | 39 |
Standard scale images
Car Nicobar 2010
Graphics
Car Nicobar 2009
Project history
Modified SDB Mk 5 class. Steel hull with aluminium superstructure. Carry a RIB inspection dinghy.
Modernizations
None.
Naval service
No significant events.
