NAVYPEDIA

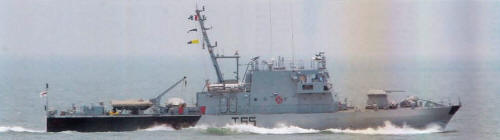

Bangaram 2007

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
बंगरम [Bangaram]	T65		Garden Reach, Kolkata		11.12.2004	10.2.2006	in service (2019)
बित्र [Bitra]	T66		Garden Reach, Kolkata		14.12.2004	28.3.2006	in service (2019)
बत्ती मालव [Batti Malv]	T67		Garden Reach, Kolkata		28.6.2005	31.7.2006	in service (2019)
बाराटांग [Baratang]	T68		Garden Reach, Kolkata		6.8.2005	12.9.2006	in service (2019)

100 - 1000 t displacement/ BRT tonnage vessels

Name No Yard No Builder Laid down Launched Comp Fate बंगरम [Bangaram] T65   Garden Reach, Kolkata   11.12.2004 10.2.2006 in service (2019) बित्र [Bitra] T66   Garden Reach, Kolkata   14.12.2004 28.3.2006 in service (2019) बत्ती मालव [Batti Malv] T67   Garden Reach, Kolkata   28.6.2005 31.7.2006 in service (2019) बाराटांग [Baratang] T68   Garden Reach, Kolkata   6.8.2005 12.9.2006 in service (2019)

Technical data

Displacement standard, t	200
Displacement full, t	260
Length, m	46.0
Breadth, m	7.50
Draught, m	3.90
No of shafts	3
Machinery	3 MTU 16V4000 M90 diesels
Power, h. p.	11100
Max speed, kts	35
Fuel, t	diesel oil
Endurance, nm(kts)	2000(12)
Armament	1 x 1 - 30/80 Medak CRN-91, 2 x 1 - 7.6/90
Electronic equipment	Bharat 1245 radar
Complement	24

Standard scale images

Graphics

Project history

Type SDB Mk 5. Version of SDB Mk 4 with more powerful machinery.

Modernizations

None.

Naval service

No significant events.
