SEA ROVER patrol boats (1954-1955)





Sea Ranger 1980

Ships


Names Builders Commissioned Losses Transfers Discarding

PL26 Sea Rover

PL27 Sea Farer

PL28 Sea Roamer

PL29 Sea Rider

PL30 Sea Nomad

PL31 Sea Wanderer

PL32 Sea Raker

PL33 Sea Rescuer

PL34 Sea Ranger

Hong Kong SY: PL26-28

Choy Lee SY: PL29-34

1954: PL26-28

1955: PL29-34

None

None

1983: PL30, 32

1985: PL27-29, 31, 33, 34



Technical data


Displacement standard, t
Displacement full, t52
Length, m

21.3

Breadth, m

5.20

Draught, m

1.60

No of shafts

2

Machinery2 Gardner diesels
Power, h. p.

288

Max speed, kts

10

Fuel, t

diesel oil

Endurance, nm(kts)1600(10)
Armament

1 x 1 - 12.7/90

Electronic equipmentradar
Complement12


Graphics

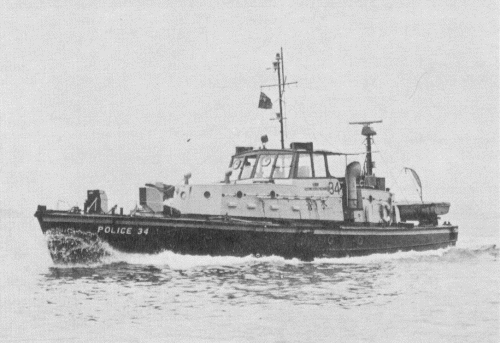

<i>Sea Ranger </i>1980
Sea Ranger 1980


Project history

Patrol craft.

Modernizations

None.

Naval service

No significant events.
