HAITI
COAST GUARD
GC4004 patrol launches (2009-2010)
GC4004 2012
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
GC4004-4008 |
SeaArk, Monticello, USA: GC4004-4008 |
2010: GC4004-4008 |
None |
None |
in service (2019): GC4004-4008 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 11 |
| Length, m | 11.0 wl 12.2 oa |
| Breadth, m | 4.30 |
| Draught, m | 0.90 |
| No of shafts | 2 |
| Machinery | 2 Cummins QSB5-9 diesels |
| Power, h. p. | 760 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 260(22) |
| Armament | small arms |
| Electronic equipment | radar |
| Complement | 4 |
Graphics

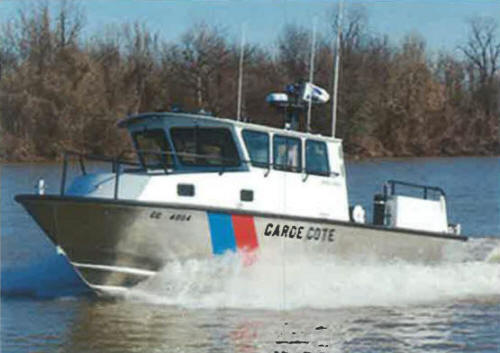

GC4004 2012
Project history
US Dauntless 40 class.
Modernizations
None.
Naval service
No significant events.
