POSEIDON submarines (1979-1980)

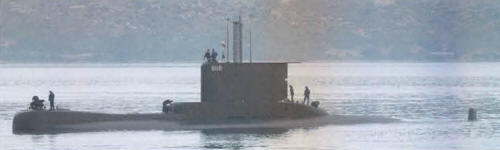

Poseidon 2005

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Ποσειδών [Poseidon] S116   Howaldtswerke, Kiel 15.4.1976 21.3.1978 22.3.1979 in service (2019)
Αμφιτρίτη [Amphitriti] S117   Howaldtswerke, Kiel 16.9.1976 14.6.1978 14.8.1979 in service (2019)
Ωκεανός [Okeanos] S118   Howaldtswerke, Kiel 1.10.1976 16.11.1978 15.11.1979 in service (2019)
Πόντος [Pontos] S119   Howaldtswerke, Kiel 15.1.1977 22.3.1979 29.4.1980 in service (2019)


Technical data


Displacement standard, t
Displacement normal, t

1185 / 1290

Length, m

56.1

Breadth, m

6.20

Draught, m

5.50

No of shafts

1

Machinery

4 MTU 12V493 TY60 diesel-generators, 1 Siemens electric motor

Power, h. p.

2200 / 5000

Max speed, kts

11 / 22

Fuel, t

diesel oil 85

Endurance, nm(kts)11300(4)(snorkel) / 400(4)
Armament

8 - 533 TT (bow, 14 SST-4)

Electronic equipmentCalypso-II radar, CSU-3-4 sonar suite (AN526, AN406A9, DUUX-2 sonars), DR-2000U ECM suite, SINBADS CCS
Complement

31

Diving depth operational, m250


Standard scale images


<i>Poseidon </i>1990
Poseidon 1990
<i>Okeanos </i>2010
Okeanos 2010


Graphics


<i>Poseidon </i>2005
Poseidon 2005


Project history

Type 209/1200, modified Glavkos-class with SINBADS CCS and longer hull to give more internal volume.

Modernizations

2010, Okeanos: lengthened (62.6m oa, 1250/1430t), PERMASYN AIP system (2 Siemens PEM fuel-cell auxiliary propulsion units, 326hp) added; - 8 - 533 TT (bow, 14 SST-4), DR-2000U ECM suite, SINBADS CCS; + 8 - 533 TT (bow, 14 (inc. Sub-Harpoon SSM (4 UGM-84C)) Mk 37 mod.2, SUT), PRS-3/15, FAS-3 sonars, Shrike ECM suite, CIRCE torpedo decoy launcher, ISUS 90-46 CCS

Naval service

No significant events.
