ANTIOPI minesweepers (1964-1970, 1953-1955/1969-1995)

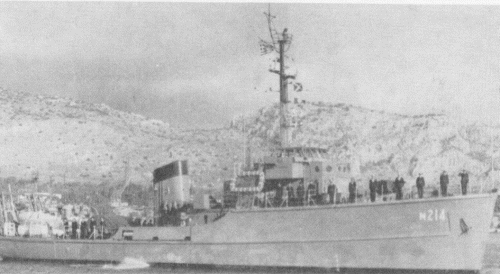

Avra 1974

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Ερατώ [Erato] (ex-Castagno) M60   Grebe, Chicago, USA   2.2.1954 6.7.1955 // 10.10.1995 stricken 10.2006
Ευνίκη [Evniki] (ex-Gelso) M61   Grebe, Chicago, USA     29.12.1953 // 10.10.1995 stricken 2.2005
Αταλάντη [Atalanti] (ex-St. Truiden) M202   Consolidated SB, Morris Heights, USA     10.2.1954 // 29.7.1969 stricken 6.2000
Αντιόπη [Antiopi] (ex-Herve) M205   Hodgdon Bros, East Boothbay, USA     31.3.1954 // 29.7.1969 stricken 1995
Φαίδρα [Faidra] (ex-Malmedy) M206   Hodgdon Bros, East Boothbay, USA     15.5.1954 // 26.9.1969 stricken 6.2000
Θάλεια [Thaleia] (ex-Blankenberge) M210   Consolidated SB, Morris Heights, USA     26.5.1954 // 26.9.1969 stricken 12.2004
Αλκυών [Alkyon] M211   Peterson Builders, Sturgeon Bay, USA     7.12.1970 stricken 2014
Κλειώ [Kleio] M213   Peterson Builders, Sturgeon Bay, USA     21.11.1968 stricken 2008
Αύρα [Avra] M214   Peterson Builders, Sturgeon Bay, USA     21.11.1968 stricken 2014
Πλειάς [Pleias] M240   Peterson Builders, Sturgeon Bay, USA     7.12.1970 stricken 2010
Κίχλη [Kichli] M241   Peterson Builders, Sturgeon Bay, USA     27.10.1964 stricken 2010
Κίσσα [Kissa] M242   Peterson Builders, Sturgeon Bay, USA     3.10.1964 stricken 2010
Αίγλη [Aigli] M246   Peterson Builders, Sturgeon Bay, USA     21.1.1965 stricken 1996
Δάφνη [Dafni] M247   Peterson Builders, Sturgeon Bay, USA     2.7.1964 stricken 12.2004
Αηδών [Aidon] M248   Peterson Builders, Sturgeon Bay, USA     13.11.1964 stricken 2014
Νιόβη [Niovi] (ex-La Roche) M254   Consolidated SB, Morris Heights, USA 3.1953 1.7.1954 11.8.1954 // 26.9.1969 stricken 10.2000


Technical data


Displacement standard, t

M211, 213, 214, 240-242, 246-248: 300

M202, 205, 206, 210, 254: 330

M60, 61: 355

Displacement full, t

M211, 213, 214, 240-242, 246-248: 394

M202, 205, 206, 210, 254: 402

M60, 61: 405

Length, m

M211, 213, 214, 240-242, 246-248: 44.3

M202, 205, 206, 210, 254: 43.0

M60, 61: 43.9

Breadth, m

M211, 213, 214, 240-242, 246-248: 8.29

M202, 205, 206, 210, 254: 7.95

M60, 61: 8.23

Draught, m

M202, 205, 206, 210, 211, 213, 214, 240-242, 246-248, 254: 2.55

M60, 61: 2.68

No of shafts

2

Machinery

M211, 213, 214, 240-242, 246-248: 2 Waukesha L-1616 diesels

M60, 61, 202, 205, 206, 210, 254: 2 General Motors 8-268A diesels

Power, h. p.

M211, 213, 214, 240-242, 246-248: 1200

M60, 61, 202, 205, 206, 210, 254: 880

Max speed, kts

M211, 213, 214, 240-242, 246-248: 13

M202, 205, 206, 210, 254: 12

M60, 61: 11.4

Fuel, t

diesel oil 40

Endurance, nm(kts)

2500(10)

Armament

M202, 205, 206, 210, 211, 213, 214, 240-242, 246-248, 254: 1 x 2 - 20/70 Mk 24, mechanical, magnetic, acoustic minesweeping gear

M60, 61: 1 x 2 - 20/70 Mk 24, Pluto USV, divers

Electronic equipment

M202, 205, 206, 210, 211, 213, 214, 240-242, 246-248, 254: Decca radar, UQS-1D sonar

M60, 61: SPN-703 radar, SQQ-14(IT) sonar

Complement

M202, 205, 206,, 210, 211, 213, 214, 240-242, 246-248, 254: 31

M60, 61: 41



Standard scale images


<i>Aidon </i>1965
Aidon 1965

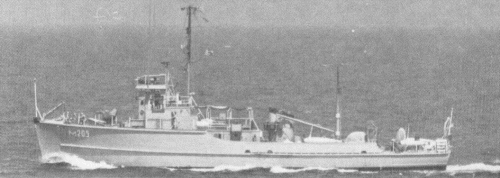

<i>Atalanti </i>1980
Atalanti 1980


Graphics


<i>Avra </i>1974
Avra 1974
<i>Antiopi </i> 1973
Antiopi 1973

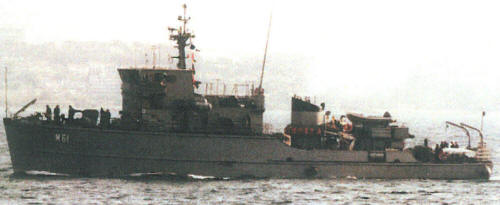

<i>Evniki </i>2002
Evniki 2002


Project history

Nine Adjutant class minesweepers were built in USA for Greece under MDAP. In 1969 Greece received five sister-ships from Belgium. In 1995 two ships, converted to minehunters, were received from Italy. Ships, built for Greece, differed from former Belgian and Italian ships by enclosed bridge and large, prominent funnel.

Modernizations

None.

Naval service

 No significant events.
