4! KEFFALINIA amphibious assault landing craft (air cushion) (1986/2001, 2005)

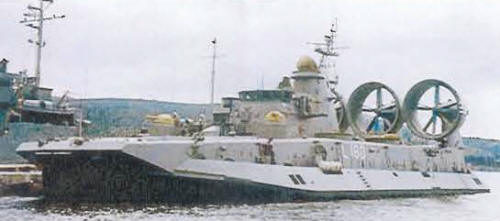

Kethallinia 2001

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Κεφαλληνία [Kethallinia] (ex-МДК-118 [MDK-118]) L180   Almaz, St. Peterburg, Russia     29.8.1994 // 20.12.2000 in service (2019)
Ιθάκη [Ithaki] (ex-Iван Богун [Ivan Bogun]) L181   More, Feodosia, Ukraine 1993 9.12.2000 3.2.2001 // 17.2.2001 in service (2019)
Κέρκυρα [Kerkira] L182   Almaz, St. Peterburg, Russia 24.1.2003 25.7.2004 4.1.2005 in service (2019)
Ζάκυνθος [Zakynthos] L183   Almaz, St. Peterburg, Russia 25.5.2000 28.5.2001 2001 in service (2019)


Technical data


Displacement standard, t

500

Displacement normal, t

550

Length, m

57.3

Breadth, m

25.6

Draught, m

1.60 / 0.00

No of shafts

3 air propellers / 2 air propellers for lift

Machinery

3 MT-70 gas turbines / 2 NO-10 gas turbines

Power, h. p.

30000 / 20000

Max speed, kts

63

Fuel, t

gas turbine oil

Endurance, nm(kts)

300(55)

Armament

1 x 2 Igla-1M SAM (32), 2 x 6 - 30/54 AK-630M, 2 x 22 - 140 MS-227 Ogon' RL

Military load

3 tanks or 8 AFV's or 360 troops or 150 t of cargo or 78 mines

Electronic equipment

Lazur', MR-123-02 Vympel, Ekran-1 radars, MP-411 ECM suite

Complement

27



Standard scale images


<i>Keffalinia </i>2010
Keffalinia 2010


Graphics


<i>Kethallinia </i>2001
Kethallinia 2001


Project history

Soviet Project 1232.2. First craft was transferred by Russian Navy, second by Ukraine, two were built for Greece under identical project 12322E.

Modernizations

None.

Naval service

No significant events.
