MIAOULIS destroyer (1944/1971)





Miaoulis 1979

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Μιαούλης [Miaoulis] (ex-Ingraham) D211   Federal, Kearny, USA 4.4.1943 16.1.1944 10.3.1944 // 16.7.1971 stricken 1992


Technical data


Displacement standard, t

2450

Displacement full, t

3320

Length, m

112.5 wl 114.8 oa

Breadth, m

12.5

Draught, m

4.39 hull 5.79 over sonar

No of shafts

2

Machinery

2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers

Power, h. p.

60000

Max speed, kts

30

Fuel, t

oil 495

Endurance, nm(kts)4800(15)
Armament

3 x 2 - 127/38 Mk 38, 2 x 1 - 40/60 Mk 3, 6 x 1 - 20/70 Mk 10, 2 x 3 - 324 TT, 2 x 24 - 178 Hedgehog Mk 11 ASWRL, 1 helicopter (Alouette III)

Electronic equipmentDecca nav., SPS-10, SPS-40, Mk 25 radars, SQS-29, SQA-10 VDS sonars, WLR-1 ECM suite
Complement274


Standard scale images


<i>Miaoulis </i>1980

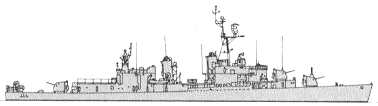

Miaoulis 1980
<i>Miaoulis </i>1990

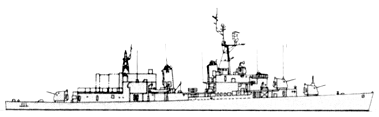

Miaoulis 1990


Graphics


<i>Miaoulis </i>1979

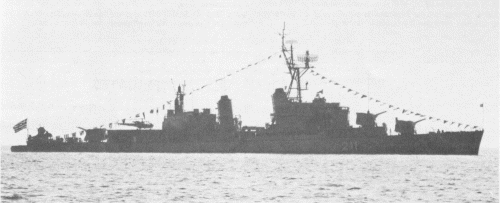

Miaoulis 1979


Project history

Former USN Allen M. Sumner class destroyer, received a FRAM II modernizaton, transferred under MDAP.

Modernizations

1987: - 2 x 1 - 40/60, 6 x 1 - 20/70, Alouette III helicopter; + 2 x 1 - 20/90 Rh-202, 2 x 1 - 12.7/90, AB-212 helicopter, 2x Loral-Hycor decoy RL

Naval service

No significant events.
