NAVARCHOS MIAOULIS unprotected cruiser (1879)





Navarchos Miaoulis

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Ναύαρχος Μιαούλης [Navarchos Miaoulis]     F C de la Méditerranée, La Seyne, France 1878 1879 1879 gunnery drilling ship 1912, stricken 1931


Technical data


Displacement normal, t

1820

Displacement full, t?
Length, m

75.0 pp

Breadth, m

11.0

Draught, m

4.40 mean

No of shafts

1

Machinery

1 HDA

Power, h. p.

2400

Max speed, kts

13.5

Fuel, t

coal 220

Endurance, nm(kts)
Armament

3 x 1 - 173/22 RK L/25 C/74, 1 x 1 - 173/17 RK L/20, 6 x 1 - 37/20 Hotchkiss, 3 - 356 TT (1 bow, 2 beam)

Complement

180



Graphics

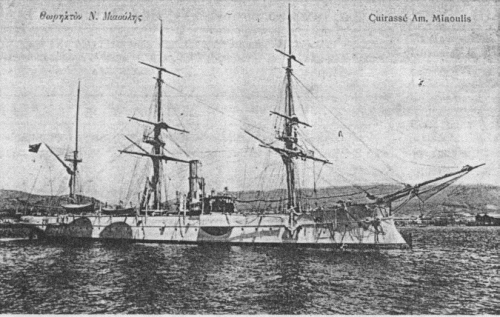

<i>Navarchos Miaoulis</i>
Navarchos Miaoulis


Project history

Iron-hulled, barque-rigged cruiser, sheathed and coppered.

Modernizations

None.

Naval service

Ship was stricken in 1912 and hulked as gunnery TS, then seamen`s TS and was finally sold in 1931.
