LS-134 patrol interceptors (1998)





LS-136 2004

Ships


Names Builders Completed Losses Transfers Discarding

ΛΣ-134-136 [LS-134-136]

Dockstavarvet, Sweden: LS-134-136

1998: LS-134-136

None

None

in service (2019): LS-134-136



Technical data


Displacement standard, t13
Displacement full, t19
Length, m13.0 wl 14.9 oa
Breadth, m3.80
Draught, m1.00
No of shafts2 waterjets
Machinery2 Volvo-Penta TAMD163P diesels
Power, h. p.1500
Max speed, kts

45

Fuel, tdiesel oil 1.5
Endurance, nm(kts)240(30)
Armament3 x 1 - 12.7/90
Electronic equipmentFR-8051 radar
Complement4


Graphics

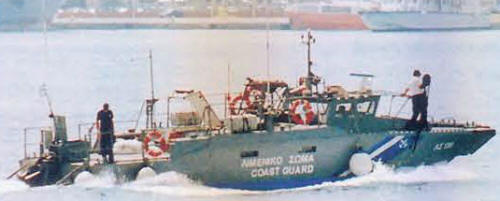

LS-136 2004
LS-136 2004


Project history

CB-90NEX class. GRP construction with armoured cockpit. Capable of being beached.

Modernizations

None.

Naval service

No significant events.
