T1 motor torpedo boats (1929)





T2 1930s

Ships


Names Builders Commissioned Losses Transfers Discarding

T1, 2

Thornycroft, Hampton, UK: T1, 2

1929: T1, 2

T1 (German SG1 4.1941), T2 (German SG2 4.1941)

none

none


Technical data


Displacement standard, t

12

Displacement full, t15
Length, m

16.8

Breadth, m

3.36

Draught, m

0.99

No of shafts

2

Machinery

2 Thornycroft petrol engines

Power, h. p.

750

Max speed, kts

40.4

Fuel, t

petrol 1.3

Endurance, nm(kts)200(39)
Armament

2 x 1 - 7.7/87, 2 - 450 TR, 4DC

Complement

5



Standard scale images


<i>T1</i> 1929
T1 1929


Graphics

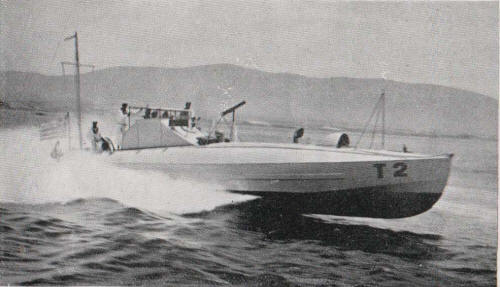

<i>T2 </i>1930s
T2 1930s


Project history

Typical representatives of family of Thornycroft 55ft boats. Wooden stepped hull, torpedoes were launched from the racks aftward.

Modernizations

None.

Naval service

No significant events.
