ANTIPLIARKHOS PEZOPOULOS fast missile attack craft (1973-1974/1994-2000)

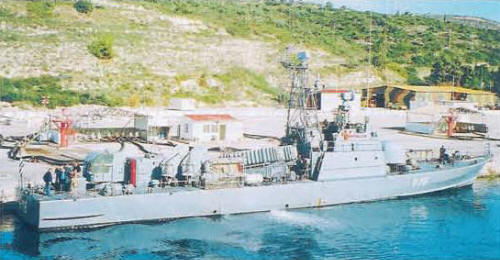

Ipopliarchos Tournas 2004
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Αντιπλοίαρχος Πεζόπουλος [Antipliachos Pezopoulos] (ex-Storch, ex-S52) | P30, 1995- P73 | Lürssen, Vegesack, West Germany | 12.3.1973 | 25.3.1974 | 17.7.1974 // 1.2.1994 | in service (2019) | |
| Υποπλοίαρχος Βότσης [Ipopliarchos Votsis] (ex-Iltis, ex-S42) | P51, 1995- P72 | CMN, Cherbourg, France | 2.2.1972 | 12.12.1972 | 8.1.1973 // 1.2.1994 | in service (2019) | |
| Πλωταρχησ Βλαχάβας [Plotarchis Vlahavas] (ex-Marder, ex-S44) | P74 | CMN, Cherbourg, France | 15.4.1972 | 5.5.1973 | 14.7.1973 // 16.3.1995 | stricken 6.2011 | |
| Πλωταρχησ Μαριδάκης [Plotarchis Maridakis] (ex-Häher, ex-S51) | P75 | CMN, Cherbourg, France | 5.4.1973 | 26.4.1974 | 12.6.1974 // 16.3.1995 | in service (2019) | |
| Πλωταρχησ Τουρνάς [Plotarchis Tournas] (ex-Leopard, ex-S45) | P76 | CMN, Cherbourg, France | 12.9.1972 | 3.7.1973 | 21.8.1973 // 23.10.2000 | stricken 6.2011 | |
| Πλωταρχησ Σακίπης [Plotarchis Sakipis] (ex-Jaguar, ex-S47) | P77 | CMN, Cherbourg, France | 29.11.1972 | 20.9.1973 | 13.11.1973 // 23.10.2000 | stricken 6.2011 |
Technical data
| Displacement standard, t | 234 |
|---|---|
| Displacement full, t | 264 |
| Length, m | 45.9 pp 47.0 oa |
| Breadth, m | 7.10 |
| Draught, m | 2.66 full load |
| No of shafts | 4 |
| Machinery | 4 MTU 16V538 TB90 (MD872) diesels |
| Power, h. p. | 12000 |
| Max speed, kts | 35.5 |
| Fuel, t | diesel oil 39 |
| Endurance, nm(kts) | 1600(15) |
| Armament | 2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Breda-Bofors 564 |
| Electronic equipment | 3RM20, Triton-G, Castor-II radars, 2x Hot Dog, 1x Wolke decoy RL, PALIS CCS |
| Complement | 30 |
Standard scale images
Antipliarchos Pezopoulos 2000
Graphics
Ipopliarchos Tournas 2004
Project history
Former Type 148 (La Combattante II A4L) craft of Bundesmarine.
Modernizations
early 2000s, all: + DR-2000S ECM suite
late 2000s, Plotarchis Vlahavas, Plotarchis Maridakis: - 2 x 2 MM38 Exocet SSM; + 2 x 2 Harpoon SSM (4 RGM-84C)
Naval service
No significant events.
