DAVID HANSEN patrol boat (1975/2008)

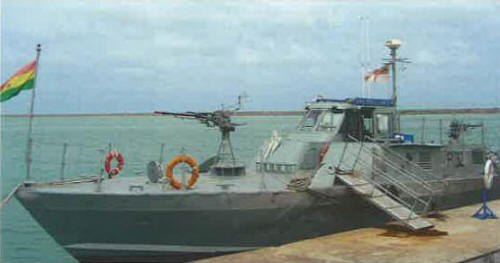

David Hansen 2007
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P32 David Hansen |
Peterson Builders, Sturgeon Bay, USA: P32 |
1975 // 2008: P32 |
none |
none |
in service (2019): P32 |
Technical data
| Displacement standard, t | 28 |
|---|---|
| Displacement full, t | 37 |
| Length, m | 19.8 |
| Breadth, m | 5.50 |
| Draught, m | 1.80 (props) |
| No of shafts | 3 |
| Machinery | 3 General Motors 8V71TI diesels |
| Power, h. p. | 1800 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 450(26) |
| Armament | 2 x 1 - 14.5/93 |
| Electronic equipment | LN-66 radar |
| Complement | 9 |
Graphics
David Hansen 2007
Project history
Former USN patrol boat of Sea Spectre Mk III type.
Modernizations
None.
Naval service
No significant events.
