U2 coastal submarine (1908)
U2 1908
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| U2 | 1 | KW Danzig | 1906 | 18.6.1908 | 7.1908 | discarded 2.1919 |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement normal, t | 341 / 430 |
| Length, m | 45.4 |
| Breadth, m | 5.50 |
| Draught, m | 3.05 |
| No of shafts | 2 |
| Machinery | 2 Daimler petrol engines / 2 SSW electric motors |
| Power, h. p. | 600 / 630 |
| Max speed, kts | 13.2 / 9.0 |
| Fuel, t | petrol 46 |
| Endurance, nm(kts) | 1600(13) / 50(5) |
| Armament | 4 - 450 TT (2 bow, 2 stern, 6) |
| Complement | 22 |
| Diving depth operational, m | 30 |
Graphics

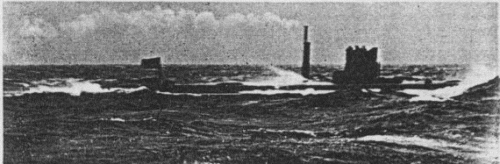

U2 1908
Project history
Project 7, built by Navy yard. Double-hulled.
Modernizations
None.
Naval service
Used for trials and training, BU in 1920.
