SEETAUCHER landing craft (1966 - 1967)

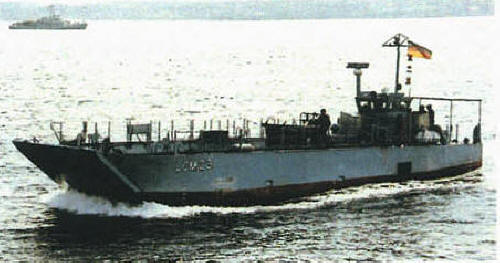

Krabbe 2003

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Seetaucher LCM1   Rheinwerft, Walsum     1966 to Greece 4.1991 (ABM20)
Seenadel LCM2   Rheinwerft, Walsum     1966 to Greece 4.1991 (ABM21)
Seedrache LCM3   Rheinwerft, Walsum     1966 to Greece 4.1991 (ABM22)
Seespinne LCM4   Rheinwerft, Walsum     1966 to Greece 4.1991 (ABM23)
Seeotter LCM5   Rheinwerft, Walsum     1966 to Greece 4.1991 (ABM24)
Seezunge LCM6   Rheinwerft, Walsum     1966 to Greece 4.1991 (ABM25)
Seelilie LCM7   Rheinwerft, Walsum     1966 to Greece 4.1991 (ABM26)
Seefeder LCM8   Rheinwerft, Walsum     1966 to Greece 4.1991 (ABM27)
Seerose LCM9   Rheinwerft, Walsum     1966 to Greece 4.1991 (ABM28)
Seenelke LCM10   Rheinwerft, Walsum     1966 to Greece 4.1991 (ABM29)
Huchen LCM11   Rheinwerft, Walsum     1966 to Greece 4.1991 (ABM30)
Sprotte LCM12, 1991- L771, 1995- LCM12   Rheinwerft, Walsum     1966 stricken 9.1993
Sardine LCM13, 1991- L772, 1995- LCM13   Rheinwerft, Walsum     1966 stricken 3.1993
Sardelle LCM14, 1991- L773, 1995- LCM14   Rheinwerft, Walsum     1966 stricken 2007
Hering LCM15, 1991- L774, 1995- LCM15   Rheinwerft, Walsum     1966 stricken 7.1994
Orfe LCM16, 1991- L775, 1995- LCM16   Rheinwerft, Walsum     1966 stricken 10.1993
Maräne LCM17, 1991- L776, 1995- LCM17   Rheinwerft, Walsum     1966 stricken 4.1993
Saibling LCM18, 1991- L777, 1995- LCM18   Rheinwerft, Walsum     1966 stricken 4.1993
Stint LCM19, 1991- L778, 1995- LCM19   Rheinwerft, Walsum     1966 stricken 4.1993
Aesche LCM20, 1991- L779, 1995- LCM20   Rheinwerft, Walsum     1966 stricken 4.1993
Hummer LCM21, 1991- L780, 1995- LCM21   Rheinwerft, Walsum     1966 stricken 3.2000
Krill LCM22, 1991- L781, 1995- LCM22   Rheinwerft, Walsum     1966 stricken 6.1996
Krabbe LCM23, 1991- L782, 1995- LCM23   Rheinwerft, Walsum     1967 stricken 2004
Auster LCM24, 1991- L783, 1995- LCM24   Rheinwerft, Walsum     1967 stricken 3.2000
Muschel LCM25, 1991- L784, 1995- LCM25   Rheinwerft, Walsum     1967 stricken 2007
Koralle LCM26, 1991- L785, 1995- LCM26   Rheinwerft, Walsum     1967 stricken 2004
Garnele LCM27, 1991- L786, 1995- LCM27   Rheinwerft, Walsum     1967 stricken 3.2000
Languste LCM28, 1991- L787, 1995- LCM28   Rheinwerft, Walsum     1967 stricken 3.2000


Technical data


Displacement standard, t

116

Displacement full, t

168

Length, m

23.6

Breadth, m

6.40

Draught, m

1.46

No of shafts

2

Machinery

2 MWM diesels

Power, h. p.

684

Max speed, kts

10.6

Fuel, t

diesel oil

Endurance, nm(kts)

1430(7)

Armament

none

Military load

60 t of cargo or 50 troops

Electronic equipmentradar
Complement7


Standard scale images


<i>Seetaucher </i>1970
Seetaucher 1970


Graphics


<i>Krabbe </i>2003
Krabbe 2003


Project history

Design was based on US LCM(8).

Modernizations

None.

Naval service

No significant events.
