S113 destroyers (1919)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| S113 | 983 | Schichau, Elbing | 1916 | 31.1.1918 | 8.1919 | discarded 11.1919, to France 5.1920 (Amiral Sénès) | |
| S114 | 984 | Schichau, Elbing | 1917 | 11.4.1918 | --- | sold incomplete 11.1919 | |
| S115 | 985 | Schichau, Elbing | 1917 | 20.7.1918 | --- | sold incomplete 11.1919 |
Technical data
| Displacement normal, t | 2060 |
|---|---|
| Displacement full, t | 2415 |
| Length, m | 106.0 oa 105.4 wl |
| Breadth, m | 10.2 |
| Draught, m | 4.84 |
| No of shafts | 2 |
| Machinery | 2 Schichau steam turbines, 4 Marine boilers |
| Power, h. p. | 45000 |
| Max speed, kts | 34.5 |
| Fuel, t | oil 720 |
| Endurance, nm(kts) | 2500(20) |
| Armament | 4 x 1 - 149/42 TK L/45 C/16, 2 x 2 - 600 TT (8), 40 mines |
| Complement | 176 - 188 |
Standard scale images

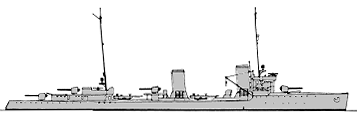

S113 1919
Project history
Genuine torpedo-boat destroyers of the 1916 design type, they represented the new heavily gun-armed type; but they exhibited poor seakeeping capabilities in the rough conditions of the North Sea.
Modernizations
None.
Naval service
They did not become operational, S113 running her final trials at the end of the war.
