B122 destroyers


Ships


Name No Yard No Builder Laid down Launched Comp Fate
B122   290 Blohm & Voss, Hamburg 1916 16.10.1917 --- sold incomplete 11.1919
B123   291 Blohm & Voss, Hamburg 1916 26.10.1918 --- sold incomplete 11.1919
B124   292 Blohm & Voss, Hamburg 1916 6.6.1919 --- sold incomplete 11.1919


Technical data


Displacement normal, t

2040

Displacement full, t

2354

Length, m

108.8 oa 107.5 wl

Breadth, m

10.3

Draught, m

4.11

No of shafts

2

Machinery

2 Marine steam turbines, 4 Marine boilers

Power, h. p.

45000

Max speed, kts

34.5

Fuel, t

oil 716

Endurance, nm(kts)

2500(20)

Armament

4 x 1 - 149/42 TK L/45 C/16, 2 x 2 - 600 TT (8), 40 mines

Complement

176 - 188



Standard scale images

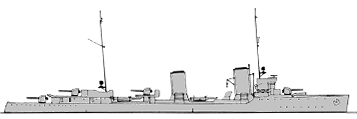

nearly sister-ship <i>V116</i> 1918
nearly sister-ship V116 1918


Project history

These large destroyers were virtually sister-ships of the S113 group, and were in the 40-65% completion level at the end of war.
