KRIEGSMARINE (GERMANY)

AIRCRAFT CARRYING SHIPS

SCHWABENLAND catapult vessel (1925/1939)

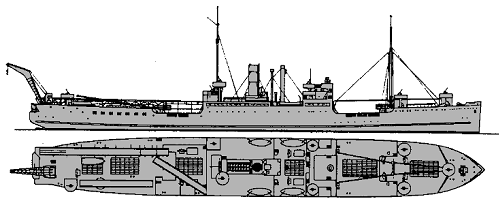

Schwabenland 1944

Name Yard No Builder Laid down Launched Comp Fate
Schwabenland (ex-Schwarzenfels) 180 Deutche Werke, Kiel   14/3/1925 16/7/1925 // 12/10/1939 damaged 24/3/1944, never repaired



Displacement standard, t



Displacement full, t

16200

Length, m

147.0

Breadth, m

18.4

Draught, m

9.95

No of shafts

2

Machinery

DWK diesels

Power, h. p.

3600

Max speed, kts

11

Fuel, t

diesel oil 1600

Armament

8 x 1 - 20/65 C/38, 1 14t catapult, seaplane (Do 18)

Complement

65



Ship project history: Cargo vessel Schwarzenfels was built in 1925 for DDG Hansa, converted to catapult vessel Schwabenland for Deutsche Lűfthansa in 1934. Seaplanes were handled by 15t crane.

Modernizations: None.

Naval service:  Schwabenland was torpedoed 24/3/1944 by British submarine Terrapin off Egersund and stranded. Later she was salvaged but used only as hulk and scuttled 31/12/1946 with chemical ammunition on board.



Ivan Gogin, 2008-14
