ALEXANDRINE iron corvettes (1886)

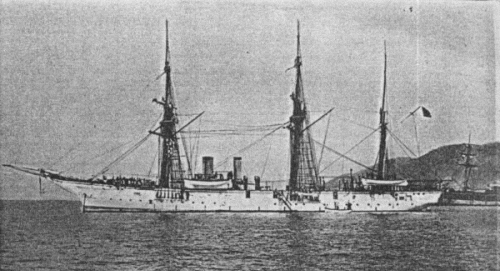

Alexandrine 1891
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Alexandrine | 9 | Kiel KW | 1881 | 7.2.1885 | 6.10.1886 | harbour vessel 1904 | |
| Arcona, 1.1902- Mercur | Danzig KW | 1881 | 7.5.1885 | 1.12.1886 | harbour vessel 1904 |
Technical data
| Displacement normal, t | 2361 |
|---|---|
| Displacement full, t | 2662 |
| Length, m | 81.2 oa 71.8 wl |
| Breadth, m | 12.6 |
| Draught, m | 5.00 mean 6.25 deep load |
| No of shafts | 1 |
| Machinery | 2 HC, 8 cylindrical boilers |
| Power, h. p. | 2400 |
| Max speed, kts | 14 |
| Fuel, t | coal 340 |
| Endurance, nm(kts) | 4180(8.5) |
| Armament | 10 x 1 - 149/27 RK L/30 C/83, 4 x 1 - 105/32 RK L/35 C/86, 6 x 5 - 37/27 RV L/30 |
| Complement | 282 |
Standard scale images

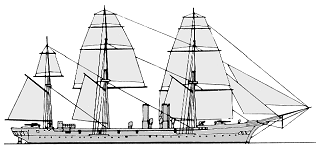

Alexandrine 1890
Graphics
Alexandrine 1891
Project history
The basic design of this class dated from 1875, so they were obsolescent even when they were laid down. Barque-rigged.
Modernizations
None.
Naval service
With their wood and copper sheathing they spent the early years of their service lives overseas. In 1902 Arcona's name was changed to Mercur to free her original name for new cruiser.
