PRIGNITZ patrol boats (1971-1972/1990)





Börde 2002

Ships


Names Builders Commissioned Losses Transfers Discarding

BG61 Prignitz (ex-GS31, ex-G-720)

BG62 Uckermark (ex-GS23, ex-G-734)

BG63 Altmark (ex-GS21, ex-G-721)

BG64 Börde (ex-GS50, ex-G-735)

Yachtswerft, Berlin, East Germany: BG61-64

1971 // 1990: BG61, 63

1972 // 1990: BG62, 64

None

None

2000: BG61

2007: BG62, 63

2008: BG64



Technical data


Displacement standard, t25
Displacement full, t48
Length, m

21.0 wl 22.6 oa

Breadth, m

4.70

Draught, m1.60
No of shafts1
Machinery

1 Motorenwerke Rosslau 6VD18/15AL1 diesel

Power, h. p.

510

Max speed, kts

17

Fuel, t

diesel oil 0.4

Endurance, nm(kts)300(12)
Armament

2 x 1 - 7.6/90

Electronic equipmentFuruno FR8031 radar
Complement6


Graphics

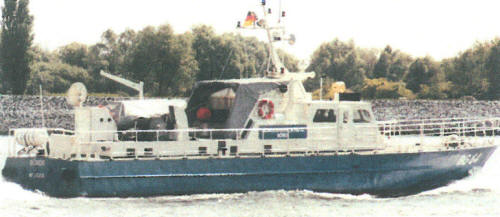

<i>Börde </i>2002
Börde 2002


Project history

Former Volksamrine Board Guard river boats. Project 1589 (Bremse).

Modernizations

None.

Naval service

No significant events.
