Z submarine (1905)

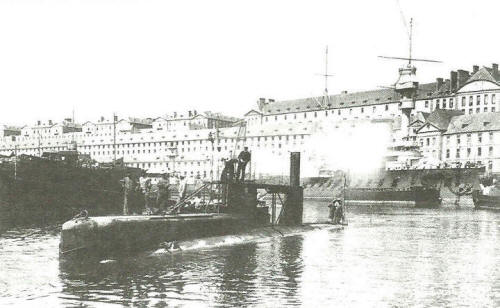

Z 1905 Many thanks to Wolfgang Stöhr for additional information on this page.
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Z | Q036 | Arsenal de Rochefort | 28.3.1904 | 1905 | stricken 3.1910 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement normal, t | 202 / 222 |
| Length, m | 41.3 |
| Breadth, m | 3.00 |
| Draught, m | 2.80 |
| No of shafts | 1 |
| Machinery | 1 diesel / 1 electric motor |
| Power, h. p. | 190 / |
| Max speed, kts | 9 / 7.1 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(5) / 45(4) |
| Armament | 2 - 450 TT (bow) |
| Complement | 16 |
| Diving depth operational, m | 30 |
Graphics
Z 1905 Many thanks to Wolfgang Stöhr for additional information on this page.
Project history
Single-hulled steel submarine, designed by Maugas. Improved Farfadet class; first French submarine with diesel engine. Diving time 4min 55 sec. Her estimated building cost was 779,300 francs (£31,172).
Modernizations
None.
Naval service
Disarmed from 1909.
Many thanks to Wolfgang Stöhr for additional information on this page.
