LE REDOUTABLE nuclear ballistic missile submarines (1971 - 1980)

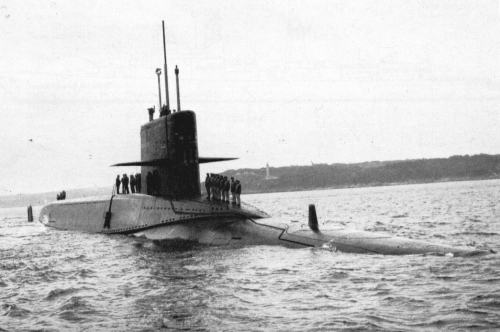

Le Redoutable 1975

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Le Redoutable S611 Q75 Arsenal de Cherbourg 30/3/1964 29/3/1967 1/12/1971 stricken 12/1991
Le Terrible S612 Q76 Arsenal de Cherbourg 24/6/1967 12/12/1969 1/1/1973 stricken 7/1996
Le Foudroyant S610 Q77 Arsenal de Cherbourg 12/12/1969 4/12/1971 6/6/1974 stricken 4/1998
L'Indomptable S613 Q78 Arsenal de Cherbourg 4/12/1971 17/9/1974 23/12/1976 stricken 5/2005
Le Tonnant S614 Q79 Arsenal de Cherbourg 19/10/1974 17/9/1977 3/5/1980 stricken 9/1999


Technical data


Displacement standard, t
Displacement normal, t

8000 / 9000

Length, m

128.0

Breadth, m

10.6

Draught, m

10.0

No of shafts

1

Machinery

1 nuclear reactor, 2 sets geared steam turbines

Power, h. p.

16000

Max speed, kts

20 / 25

Fuel, t

nuclear

Endurance, nm(kts)practically unlimited
Armament

S611, 612: 16 M-1 SLBM (16 M-1), 4 - 550 TT (bow, 18)

S610: 16 M-2 SLBM (16 M-2), 4 - 550 TT (bow, 18)

S613, 614: 16 M-20 SLBM (16 M-20), 4 - 550 TT (bow, 18)

Electronic equipmentDRUA-33 radar, DUUV-23, DUUX-2 sonars, ARUR-12 ECM suite, SEAO/OPSMER CCS
Complement135
Diving depth operational, m200


Standard scale images


<i>Le Redoutable </i>1980
Le Redoutable 1980


Graphics


<i>Le Redoutable </i>1975
Le Redoutable 1975

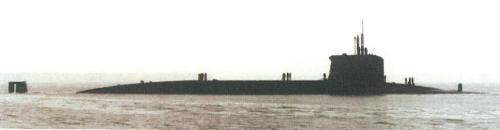

<i>L'Indomptable </i>2002
L'Indomptable 2002


Ship project history


Owing to the political circumstances in which the Force de Dissuasion was conceived, no US assistance in the design and construction of the SNLEs was forthcoming. The first reactor constructed, the PAT 1, was produced in collaboration with the CEA (the French Atomic Energy Authority) and tested extensively ashore at Cadaraché. Simultaneously development of the missiles took place, the first MSBS being launched from the experimental submarine Gymnote at the Landes Trials Centre at the end of 1968.

Construction of the submarines posed a number of technical problems such as the development of the high-tensile steel to cope with the increase in diving depth (up to 300m), the adaptation of the hull to nuclear propulsion, and the development of suitable steering mechanisms. The cylindrical hull was constructed using prefabricated all-welded sections each of 200t.

In addition tothe main propulsion machinery there was an emergency diesel capable of bringing the submarine home in the event of a failure in the nuclear plant; it had a range of about 5000nm. The diving planes were on the fin, as in US boats. Four torpedo tubes were fitted forward, a total of eighteen torpedoes being carried. The submarine's position can be accurately determined by reference to three inertial navigation centres (CIN) ashore, and there was a periscope for celestial navigation.

The first MSBS was the M-1, an 18t two-stage missile of similar length and diameter to the US Poseidon, but carrying only a single 500-kiloton warhead and with a range of only 2500km. The M-1 missile was installed in the first two boats, but was then superseded by the 3000km M-2, which went into service aboard the third boat. Le Foudroyant. From 1976 onwards, both the M-1 and the M-2 were replaced by the M-20, which had a one-megaton thermonuclear warhead and an upgraded re-entry vehicle system.

L'lndomptable and Le Tonnante had a metallic reactor core in place of the oxide cores of earlier boats.

Modernizations


1977-1978, Le Redoutable, Le Terrible: - 16 M-1 SLBM; + 16 M-20 SLBM (16 M-20)

1979, Le Foudroyant: - 16 M-2 SLBM; + 16 M-20 SLBM (16 M-20)

1987, Le Tonnant; 1989, L'Indomptable; 1990, Le Terrible; 1992, Le Foudroyant: - 16 M-20 SLBM, DUUV-23, DUUX-2 sonars; + 16 M-4 SLBM (16 M-4), ability to fire SM39 Exocet SSM (4 SM39), DMUX-21 sonar suite (DUUV-23, DUUX-5, DSUV-61B towed array sonars)

Naval service


No significant events.
