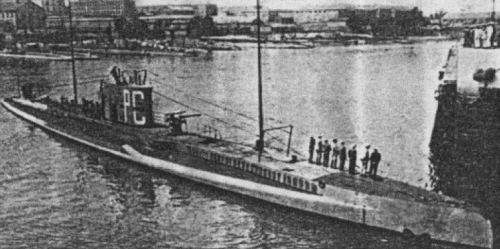

Pierre Chailley 1930 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Pierre Chailley	NN2		Normand, Le Havre	5.1917	19.12.1921	1922	stricken 1936

Technical data

Displacement standard, t
Displacement normal, t	884 / 1191
Length, m	70.0
Breadth, m	7.50
Draught, m	4.00
No of shafts	2
Machinery	2 Sulzer diesels / 2 electric motors
Power, h. p.	1800 / 1400
Max speed, kts	13.7 / 8.5
Fuel, t	diesel oil
Endurance, nm(kts)	2800(11) / 80(5)
Armament	1 x 1 - 100/45 M1917, 4 - 450 TT (2 bow, 2 x 1, 4), 40 mines
Complement	44
Diving depth operational, m

Standard scale images

Graphics

Project history

Built under 1917 programme. Double-hulled submarine of Normand-Fenaux type. Mines were stored in external tubes and were been laid by Normand-Fenaux system.

Modernizations

None.

Naval service

No significant events.
