L'Inflexible 2002

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
L'Inflexible	S615		DCN, Cherbourg	27.3.1980	23.6.1982	1.4.1985	stricken 1.2008

Technical data

Displacement standard, t
Displacement normal, t	8087 / 9000
Length, m	128.7
Breadth, m	10.6
Draught, m	10.0
No of shafts	1
Machinery	1 nuclear reactor, 2 sets geared steam turbines
Power, h. p.	16000
Max speed, kts	20 / 25
Fuel, t	nuclear
Endurance, nm(kts)	practically unlimited
Armament	16 M-4 SLBM (16 M-4), 4 - 550 TT (bow, 18, inc. SM39 Exocet SSM (4 SM39))
Electronic equipment	DRUA-33 radar, DMUX-21 sonar suite (DUUV-23, DUUX-5, DSUV-61B towed array sonars), ARUR-12 ECM suite, SEAO/OPSMER CCS
Complement	135
Diving depth operational, m	300

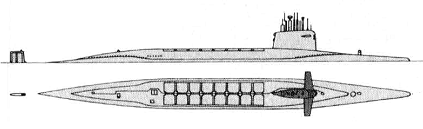

Standard scale images

Graphics

Project history

L'Inflexible, the sixth boat, was an intermediate design between the Le Redoutable class and the new-generation SNLE of the Le Triomphant class, and incorporated a number of improvements. She was fitted from the outset to fire the M-4 missile, which carried six TN-70 150kt MlRVs out to a range of 4000km. She also had the new DSUX-21 multifunction sonar array, DUUX-5 passive ranging, a DSUV-61 towed array, and improved inertial navigation systems. The diving planes were mounted higher on a more streamlined fin, and diving depth had been increased from 200m to 300m. Considerable attention was given to reducing noise emissions.

Modernizations

2001: - 16 M-4 SLBM; + 16 M-45 SLBM (16 M-45)

Naval service

No significant events.
