CLORINDE submarines (1916 - 1917)





Clorinde Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Clorinde Q090   Arsenal de Rochefort 11.1910 2.10.1913 10.1916 stricken 1.1926
Cornélie Q091   Arsenal de Rochefort 11.1910 29.10.1913 9.1917 stricken 12.1926


Technical data


Displacement standard, t
Displacement normal, t413 / 567
Length, m

53.9

Breadth, m

5.10

Draught, m

3.40

No of shafts

2

Machinery

2 MAN-Loire diesels / 2 electric motors

Power, h. p.

800 / 700

Max speed, kts

13 / 9

Fuel, t

diesel oil

Endurance, nm(kts)1300(10) / 100(5)
Armament

8 - 450 TT (6 Drzewiecki drop-collars, 2 fwd ext, 8)

Complement29
Diving depth operational, m40


Graphics

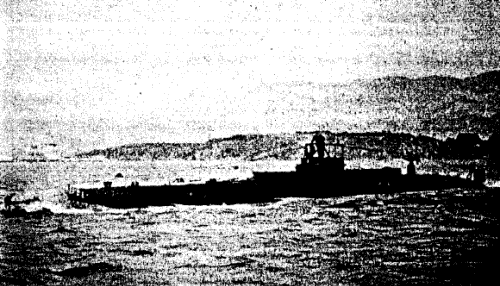

<i>Clorinde</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Clorinde Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Double-hulled submarines, built under the 1909 programme. Project of M. Hutter on the basis of Labeuf Brumaire.

Modernizations 1917, both + 1 x 1 - 75/35 M1897 Naval service

1917, both: + 1 x 1 - 75/35 M1897 Naval service: No significant events.



Many thanks to Wolfgang Stöhr for additional information on this page.
