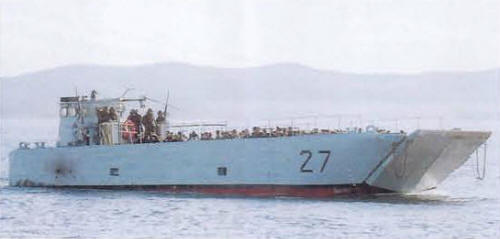

CTM27 2008

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp.	Fate
	CTM17		Auroux, Arcachon			1982	to Brazil 8.2015 (Icarai)
	CTM18		Auroux, Arcachon			22.12.1982	in service (2019)
1997- Do Ha	CTM19		CMN, Cherbourg			17.2.1983	to Chile 12.2011 (Soldado Fuentes)
1997- Néké Grav	CTM20		CMN, Cherbourg			11.3.1983	in service (2019)
1997- Guéréro	CTM21		CMN, Cherbourg			20.10.1982	in service (2019)
1997- Kien An	CTM22		CMN, Cherbourg			28.10.1982	in service (2019)
1997- Song Can	CTM23		CMN, Cherbourg			12.1.1983	in service (2019)
	CTM24		CMN, Cherbourg			8.8.1984	to Chile 12.2011 (Cabo Reyes)
	CTM25		CMN, Cherbourg			26.10.1984	in service (2019)
	CTM26		CMN, Cherbourg			12.12.1985	in service (2019)
1997- Indochine	CTM27		CMN, Cherbourg			14.8.1986	in service (2019)
1997- Tonkin	CTM28		CMN, Cherbourg			28.4.1988	in service (2019)
1997- Nui Dho	CTM29		CMN, Cherbourg			23.6.1988	in service (2019)
1997- Khoan Bo	CTM30		CMN, Cherbourg			23/21989	in service (2019)
1997- Phu Doan	CTM31		CNP, La Rochelle			27.5.1992	in service (2019)
	CTM13		CMN, Cherbourg			21.4.1983 // 7.2010	in service (2019)
	CTM14		CMN, Cherbourg			26.5.1983 // 7.2010	to Brazil 8.2015 (Muriqui)
	CTM15		CMN, Cherbourg			22.6.1983 // 7.2010	in service (2019)
	CTM17		CMN, Cherbourg			10.1983 // 7.2010	in service (2019)

Technical data

Displacement standard, t	62
Displacement full, t	150
Length, m	21.4 pp 23.8 oa
Breadth, m	6.35
Draught, m	1.63
No of shafts	2
Machinery	2 Poyaud-Wärtsilä UD18V8520NS diesels
Power, h. p.	470
Max speed, kts	9
Fuel, t	diesel oil 3
Endurance, nm(kts)	380(8)
Armament	2 x 1 - 12.7/90
Military load	90t cargo
Electronic equipment	CTM13-18, 25, 26, 28: Furuno RDP radar CTM20, 23: Koden radar
Complement	4

Graphics

Project history

LCMs. CTM13, 15 and 17 were transferred by the ARmy after dissolution of 519 Regiment in La Rochelle.

Modernizations

None.

Naval service

No significant events.
