ALSACIEN torpedo boats (1942 - 1943 / 1946)


Ships


Name No Yard No Builder Laid down Launched Comp Fate
L`Alsacien (ex-T23) T07, 1950- D604 1482 Schichau, Elbing, Germany 8.1940 14.6.1941 6.1942 // 2.1946 stricken 6.1954
Le Lorrain (ex-T28) T08, 1950- D605 1487 Schichau, Elbing, Germany 9.1941 8.10.1942 6.1943 // 2.1946 hulk 10.1955


Technical data


Displacement standard, t

1294

Displacement full, t

1754

Length, m

97.0 wl 102.5 oa

Breadth, m

10.0

Draught, m

2.66 normal 3.22 max

No of shafts

2

Machinery

2 sets Wagner geared steam turbines, 4 Wagner boilers

Power, h. p.

29000

Max speed, kts

32.5

Fuel, t

oil 374

Endurance, nm(kts)5000(19)
Armament

L`Alsacien: 4 x 1 - 105/45 SK C/32, 2 x 2 - 37/83 SK C/30, 3 x 4 - 20/65 C/38, 3 x 1 - 20/65 C/38, 2 x 3 - 533 TT, 2 DCT (32), 50 mines

Le Lorrain: 4 x 1 - 105/45 SK C/32, 2 x 2 - 37/83 SK C/30, 1 x 4 - 20/65 C/38, 2 x 2 - 20/65 C/38, 2 x 3 - 533 TT, 2 DCT (32), 50 mines

Electronic equipment

2x FuMO 63 radars, S-Gerät sonar, GHG hydrophone, FuMB3 Bali, FuMB 4 Sumatra ECM suites

Complement

206



Standard scale images

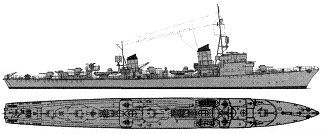

<i>L`Alsacien</i> 1946
L`Alsacien 1946


Project history

Ex-German fleet torpedo boats of 1939 type taken over by reparations.

Modernizations

None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
