BUINO destroyer (1918 / 1920)





sister-ship V125 1917 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Buino (ex-V130)   475 Vulcan, Stettin, Germany 1917 20.11.1917 2.1918 // 8.1920 stricken 2.1933


Technical data


Displacement normal, t924
Displacement full, t1188
Length, m

81.7 wl 82.0 oa

Breadth, m

8.32

Draught, m

3.48 normal 4.12 deep load

No of shafts

2

Machinery

2 AEG-Vulcan steam turbines, 3 Marine boilers

Power, h. p.

23500

Max speed, kts

34

Fuel, t

oil 298

Endurance, nm(kts)2050(17)
Armament

3 x 1 - 105/42 Tbts L/45 C/16, 2 x 2 - 500 TT, 2 x 1 - 500 TT (8), 24 mines

Complement105


Standard scale images


<i>Buino</i> 1920
Buino 1920


Graphics

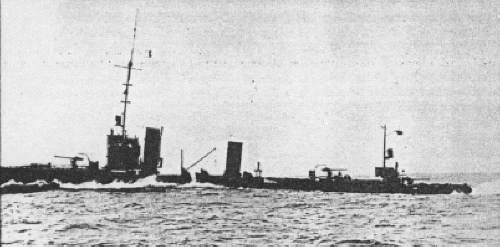

sister-ship <i>V125</i> 1917 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
sister-ship V125 1917 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Ex-German destroyer of V125 class.

Modernizations

None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
