SANS SOUCI seaplane tenders (1942 - 1943 / 1947)





SG1

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Sans Souci   311 A C de la Loire, St. Nazaire 1938 28.11.1940 11.1942 // --- completed as German escort SG3 (ex-Jupiter, ex-Uranus)
La Pérouse (ex-Sans Pareil) A32, 1950- F750 312 A C de la Loire, St. Nazaire 1939 28.11.1940 9.1943 // 5.1947 completed as German escort SG4 (ex-Saturn, ex-Merkur), returned 5.1945, commissioned as survey vessel / aviso, stricken 1969
Beautemps Beaupré (ex-Sans Peur) A33, 1950- F751 S9 A C de St. Nazaire - Penhoët 1940 2.10.1940 8.1942 // 5.1947 completed as German escort SG1 (ex-Merkur, ex-Jupiter), returned 5.1945, commissioned as survey vessel / aviso, stricken 1969
Sans Reproche   T9 A C de St. Nazaire - Penhoët 1938 30.10.1940 9.1942 // --- completed as German escort SG2 (ex-Uranus, ex-Saturn)


Technical data


Data variantas designed La Pérouse, Beautemps Beaupré as returned
Displacement standard, t

1372

1500

Displacement full, t

1760

2100

Length, m

90.0 pp 95.0 oa

92.0 wl 95.0 oa

Breadth, m

11.8

11.8

Draught, m

3.20

3.20 normal, 3.64 max

No of shafts

2

2

Machinery

2 Sulzer diesels

2 Sulzer diesels

Power, h. p.

4200

4140

Max speed, kts

18

16.7

Fuel, t

diesel oil 256

diesel oil 256

Endurance, nm(kts)12000(10) 12000(10)
Armament

1 x 1 - 75/50 M1927, seaplanes

La Pérouse: 2 x 1 -105/45 SK C/32, 2 x 2 - 37/83 SK C/30, 6 x 2 - 20/65 C/38

Beautemps Beaupré: 3 x 1 - 105/45 SK C/32, 2 x 2 - 37/83 SK C/30, 6 x 2 - 20/65 C/38

Electronic equipment --- FuMO 28 radar
Complement644

178



Standard scale images

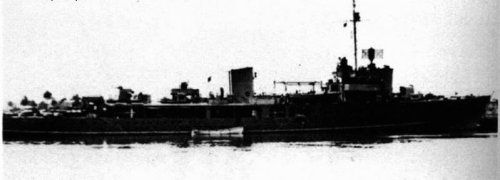

<i>SG1</i> <i>(ex-Sans Peur) </i>1945
SG1 (ex-Sans Peur) 1945

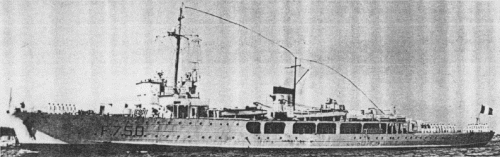

<i>La Pérouse </i>1955
La Pérouse 1955
<i>Sans Souci </i>as designed
Sans Souci as designed


Graphics


<i>SG1</i>
SG1
<i>La Pérouse</i> 1954 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
La Pérouse 1954 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

These seaplane tenders were captured by German troops in St. Nazaire on the stocks in June, 1940 at various availability stages. It was originally planned to complete them as air defence and fighter direction ships (Flügsicherungsschiffe) under names Uranus, Saturnus, Jupiter and Merkur. In February, 1941, control on building was transferred to ministry of aviation, however in April, 1942 the control was returned to Kriegsmarine, and ex-depot ships were completed as fast escorts (Schnelle Geleitboote) SG1-4. They were armed by German artillery, purposed, first of all, on AA role. During service hull weakness and bad seaworthiness have come to light. After war two survived SG1 and SG4 were returned to France and after repair commissioned as "Avisos Hydrographiques" ("aviso / survey ships") but in 1950 received numbers with F- prefixes, so we can to sign them as frigates.

Modernizations

to 1954, La Pérouse: was armed with 1 x 1 - 105/45 SK C/32, 1 x 2 - 40/60 Mk 1, 4 x 1 - 20/70 Mk 10, 2 x 24 - 178 Hedgehog Mk 10.11 ASWRL, radars, sonar

to 1954, Beautemps Beaupré: was armed with 1 x 1 - 105/45 SK C/32, 2 x 2 - 40/60 Mk 1, 4 x 1 - 20/70 Mk 10, 2 x 24 - 178 Hedgehog Mk 10.11 ASWRL, radars, sonar

Naval service

No significant events.
