IPHIGÉNIE wooden cruiser (1883)





Iphigénie

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Iphigénie     Arsenal de Brest 4/1877 1881 10/1883 stricken 1905


Technical data


Displacement normal, t

3346

Displacement full, t
Length, m

73.2 wl

Breadth, m

14.2

Draught, m

6.81 max

No of shafts

1

Machinery

1 HC, 6 cylindrical boilers

Power, h. p.

2780

Max speed, kts

14

Fuel, t

coal 400

Endurance, nm(kts)4600(10)
Armament

2 x 1 - 165/21 M1870, 18 x 1 - 139/21 M1870M, 2 x 1 - 100/27 M1875, 8 x 5 - 37/20 M1885, 1 - 350 TT (aw, beam)

Complement

435



Graphics

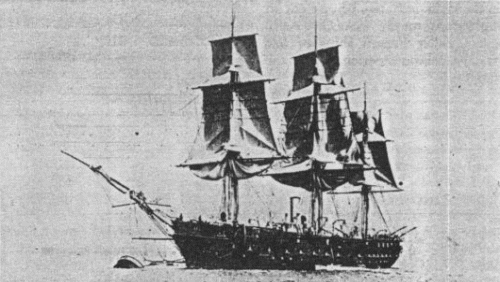

<i>Iphigénie</i>
Iphigénie


Project history

A wooden-hulled cruiser with ship rig, overhanging bow and stern, and short forecastle and poop. The funnel was abaft the mainmast. The 165mm were in embrasure ports under the forecastle with 2 139mm similarly under the poop, 4 on the upper deck and 12 on the main deck broadside.

Modernizations

None.

Naval service

Iphigénie later served, with a reduced armament, as a seagoing TS for midshipmen.
