Forbin 1889

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Coëtlogon			Cie Transatlantique, Penhöet	1887	3.12.1888	8/1894	stricken 1906
Forbin			Arsenal de Rochefort	5/1886	14.1.1888	2/1889	collier 11.1913
Surcouf			Arsenal de Cherbourg	5/1886	10/1888	1890	stricken 4.1921

Technical data

Displacement normal, t	Forbin: 1935 Surcouf: 2012 Coëtlogon: 1901
Displacement full, t
Length, m	95.0 wl
Breadth, m	9.00
Draught, m	5.23 max
No of shafts	2
Machinery	2 HC, 6 cylindrical boilers
Power, h. p.	5800
Max speed, kts	20 - 20.5
Fuel, t	coal 300
Endurance, nm(kts)	2400(10)
Armour, mm	steel; deck: 40
Armament	Forbin: 2 x 1 - 139/30 M1884, 3 x 1 - 47/40 M1885, 4 x 5 - 37/20 M1885, 4 - 350 TT (beam aw), 150 mines Surcouf, Coëtlogon: 4 x 1 - 139/30 M1884, 3 x 1 - 47/40 M1885, 4 x 5 - 37/20 M1885, 4 - 350 TT (beam aw), 150 mines
Complement	199

Graphics

Project history

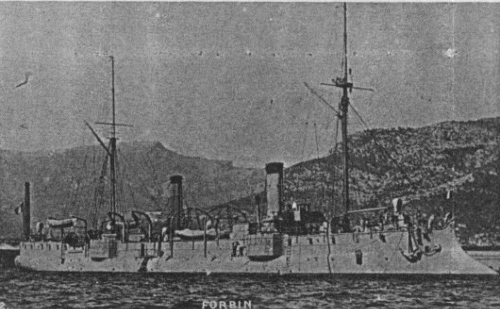

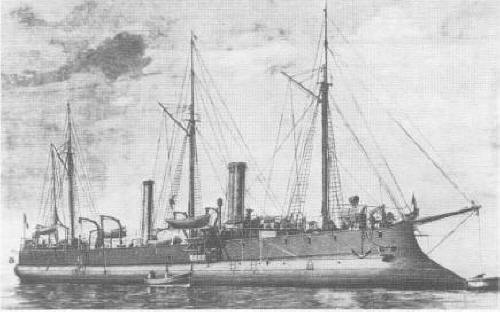

This class were of very fine lines with plough bows, forecastle and poop, two funnels and three light masts, later two except in Surcouf. There was considerable tumblehome. The 139mm, of which only two were originally carried by Forbin, were in upper deck sponsons. Coëtlegon failed on trials and her engines were replaced, resulting in a three year delay in completion.

Ship protection

There was a curved 40mm armour deck with a cofferdam above and a thin splinter deck over the machinery spaces.

Modernizations

1890, Forbin: + 2 x 1 - 139/30 M1884

1893, Surcouf: CT was added

1900s, Forbin, Surcouf: were fitted for oil burning; - 4 - 350 TT; + 5 x 1 - 47/40 M1885

Naval service

No significant events.
