ÉMILE BERTIN light cruiser (1935)





Émile Bertin 1939 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Émile Bertin   F7 A C de la Loire et Penhoët, St-Nazaire 18.8.1931 9.5.1933 28.1.1935 FNFL 6.1943, TS 10.1951, stricken 10.1959


Technical data


Displacement standard, t

5886

Displacement full, t

8480

Length, m

167.0 pp 177.0 oa

Breadth, m

16.0

Draught, m

6.60 full load

No of shafts

4

Machinery

4 sets Parsons geared steam turbines, 6 Penhoët boilers

Power, h. p.

102000

Max speed, kts

34

Fuel, t

oil 1360

Endurance, nm(kts)3600(15)
Armour, mm

magazines: 30, deck: 20, CT: 25

Armament

3 x 3 - 152/55 M1930, 1 x 2 - 90/50 M1930, 2 x 1 - 90/50 M1926, 4 x 2 - 37/50 M1933, 4 x 2 - 13.2/76, 2 x 3 - 550 TT, 1 catapult, 2 seaplanes (GL.832), 200 mines (overloaded)

Complement

567



Standard scale images

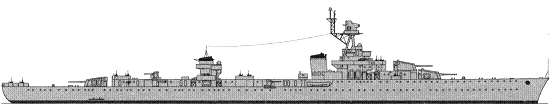

<i>Émile Bertin</i> 1939
Émile Bertin 1939

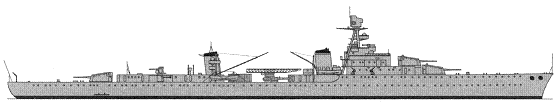

<i>Émile Bertin</i> 1945
Émile Bertin 1945


Graphics

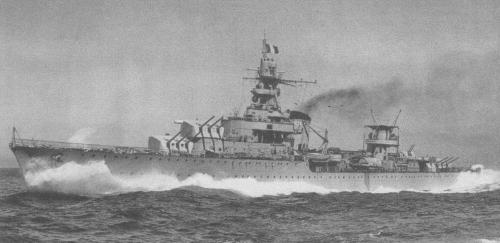

<i>Émile Bertin</i> 1939 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Émile Bertin 1939 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Built under the 1927 programme. Originally it was supposed to create an advanced cruiser-minelayer on the basis of Pluton, but in an ultimate variant minelaying abilities have faded into the background.

First in the French Navy Émil Bertin received triple 152mm turrets. The construction has appeared too light, and in 1935 hull under turrets was strengthened. On trials cruiser reached 39.66kts at 137908hp.

Ship protection

magazines had 30mm box-shaped protection. Turrets had no armour.

Modernizations 12.

1943: - 4 x 2 - 37/50, 4 x 2 - 13.2/76, 2 x 3 - 500 TT, catapult with seaplanes; + 2 x 2 - 90/50 M1930, 4 x 4 - 40/56 Mk 1.2, 20 x 1 - 20/70 Mk 4, SA, SF radars

1945: + type 284, type 285 radars

Naval service

At the moment of armistice signing Émil Bertin was on Martinique. Under the agreement from 1.5.1942 she was disarmed. Later, in June, 1943, Government of Martinique recognised Gaullist Algerian Government, and cruiser has passed to the USA for repair. Émil Bertin became seagoing gunnery training ship in 1947 and laid up to reserve in 1952.

Many thanks to Wolfgang Stöhr for additional information on this page.
