Amiral Cécille

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Amiral Cécille			F C de la Méditerranée, La Seyne	8/1886	3.5.1888	9/1890	TS 1907, BU 1919

Technical data

Displacement normal, t	5839
Displacement full, t
Length, m	115.5
Breadth, m	15.0
Draught, m	6.81 max
No of shafts	2
Machinery	4 VC, 12 cylindrical boilers
Power, h. p.	10200
Max speed, kts	19.4
Fuel, t	coal 925
Endurance, nm(kts)	8000(10)
Armour, mm	steel; deck: 55 with 100mm slopes, CT: 90
Armament	8 x 1 - 165/30 M1884, 10 x 1 - 139/30 M1884, 6 x 1 - 47/40 M1885, 14 x 5 - 37/20 M1885, 4 - 380 TT (aw, 1 bow, 2 beam, 1 stern)
Complement	517

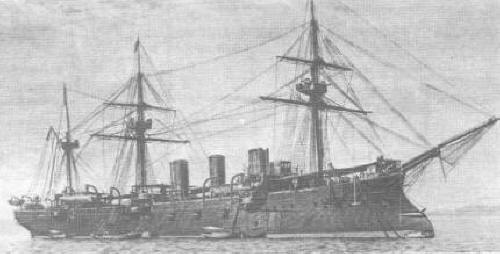

Graphics

Project history

More usually known as the Cécille, this ship generally resembled the Tage and was originally rigged as a barque without royals. Seven of the 165mm were on the upper deck, six being in sponsons and one firing right ahead, while the eighth gun was right aft on the poop. The 139mm were on the main deck broadside.

Ship protection

The protective deck was 55mm total on the flat and 100mm on the slopes which ended 1.3m below water. There was a cofferdam above the protective deck, and the battery was closed by 80mm bulkheads between the main and upper deck, with 90mm on the CT. She appears to have had better underwater compartmentation than the Tage.

Modernizations

1900s: - 1 - 380 TT (stern)

Naval service

Since 1907 Amiral Cécille served as TS for ship engineers at Toulon.
