JEAN-FRANÇOIS DENIAU patrol vessel (2015)

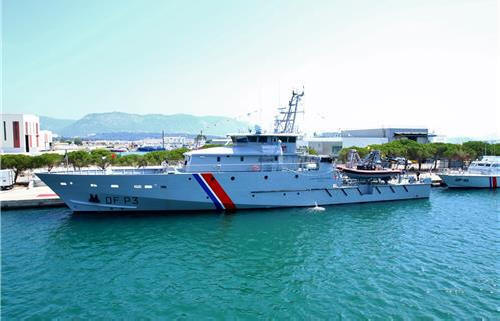

Jean-François Deniau 2016
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Jean-François Deniau | DF P3 | SOCARENAM, St-Malo // Boulogne-sur-Mer | 9.2014 | 7.7.2015 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 520 |
| Length, m | 53.7 |
| Breadth, m | 9.40 |
| Draught, m | 3.00 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3516 diesels |
| Power, h. p. | 6400 |
| Max speed, kts | 21 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3500(16) |
| Armament | 2 x 1 - 12.7/90, 2 x 1 - 7.5/90 |
| Electronic equipment | 2x Furuno radars |
| Complement | 14 + 10 passengers |
Graphics
Jean-François Deniau 2016
Project history
Customs cruiser. Aluminium hull and superstructure.Carries two RIBs (Zodiac ZH938 and Zodiac ZH638).
Modernizations
None.
Naval service
No significant events.
