HAIZE HEGOA patrol boats (1990-2001)
Avel Sterenn
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
DF31 Alizé, 2010s- Pitera DF36 Kan Avel DF37 Vent d'Aval, 2010s - Nordet DF43 Haize Hegoa DF44 Mervent, 2010s- Rakawa DF45 Vent d'Autan, 2010s- Sirocco DF46 Avel Sterenn DF47 Lissero |
Couach, Arachon: DF31, 36, 37, 43-47 |
1990: DF43 1991: DF44 1993: DF31, 45-47 1994: DF37 2001: DF36 |
none |
none |
in service (2019): DF31, 37, 43-47 |
Technical data
| Displacement standard, t | 64 |
|---|---|
| Displacement full, t | 75 |
| Length, m | 28.7 |
| Breadth, m | 6.41 |
| Draught, m | 1.60 |
| No of shafts | 2 + 1 waterjet |
| Machinery | 2 General Motors Detroit Diesel 12V71 TI diesels + 1 General Motors Detroit Diesel 6V82 TA diesel |
| Power, h. p. | 2200 + 550 = 2750 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(15) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | 2x Furuno radars |
| Complement | 8 |
Graphics

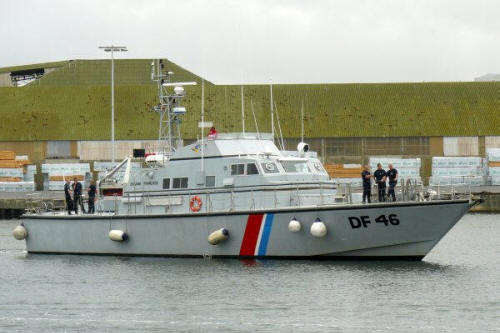

Avel Sterenn
Project history
Medium patrol boats. Custom.
Modernizations
None.
Naval service
No significant events.
