P760 motor launches (1985 - 1990, 1988-1991/1992)





Mélia 2003

Ships


Names Builders Completed Losses Transfers Discarding

P755 (ex-Y755), 1993- P755 Miri

P760, 1993- P760 Pétulante

P761, 1993- P761 Mimosa

P764 (ex-Y764)

P778, 1993- P778 Réséda

P789, 1993- P789 Mélia

P790, 1993- P790 Vétiver

P791, 1993- P791 Hortensia

Sibiril, Grantec: P755, 791

Stento, Balaruc-les-Bains: P760, 761, 764, 778, 789, 790

1985: P760

1987: P761, 778, 789, 790

1990: P791

1988 // 1992: P764

1991 // 1992: P755

none

none

2004: P764

2006: P760

2007: P755, 790

2009: P761

2014: P791

2015: P778

2018: P789 (auxiliary)



Technical data


Displacement standard, t

16

Displacement full, t20
Length, m13.2 wl 14.6 oa
Breadth, m4.60
Draught, m1.20 hull 1.90 max
No of shafts2
Machinery2 Badouin 12 F 11S diesels
Power, h. p.800
Max speed, kts

20

Fuel, t

diesel oil

Endurance, nm(kts)360(18)
Armament1 x 1 - 12.7/90, 1 x 1 - 7.6/90
Electronic equipmentDecca 060 or Furuno radar
Complement7


Graphics

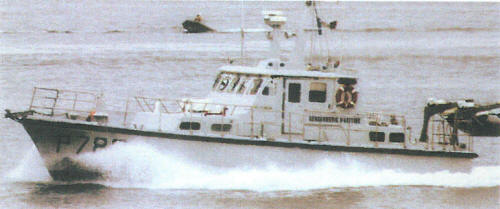

<i>Mélia </i>2003
Mélia 2003

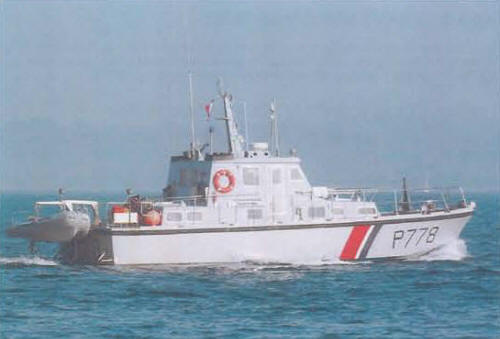

<i>Réséda </i>2008
Réséda 2008


Project history

Small patrol boats, GRP hulls.

Modernizations

None.

Naval service

No significant events.
